BOPP Capacitor Films
We are the manufacturer and supplier of Plain BOPP Capacitor Film (MP). Features: 1) With corona treatment in one side for metallizing 2) The metallized films produced by this product have mechanic, physical, and uniform metallized layer with high attachment force and anti-oxidation 3) Application: used for low power shunt capacitor, AC motor running capacitor and various DC-high frequency capacitors 4) Thickness: 2.5 micron - 12 micron 5) Standard width: 620mm 6) Inside roll: 76mm or 150mm We produce plain bopp capacitor film, they are both excellent in quality and low in price
Polyester Film Capacitor
Polyester Film Capacitor: 1).rated voltage:100V, 250V, 400V, 2).capacitance:0.047uF---10000uF 3).capacitance tolerance:J(+-5%), K(+-10%), M(+-20%), Z(+80%, -20%), P(+100%, 0) 4).insulation resistance:>=2000MΩ 5).dielectric strength:1.5 Vr Apply a AC voltages between the lead wires for 5 sec., No failure. 6).dissipation factor:0.3%---5% 7).temperature feature:-25 C ---+85 C
Film Capacitor (RoHS)
Suntan company offer below full series of film capacitor for your choice. TS01 Polyester (Mylar) Film Capacitor - PEI TS02 Metallized Polyester Film Capacitor TS02A Metallized Polyester Film Capacitor - AC - MFA TS02B Metallized Polyester Film Capacitor - Box - MEC TS02C Metallized Polycarbonate Film Capacitor TS03 Miniature Size Metallized Polyester Film Capacitor TS03N Miniature Size Metallized Polyester Film Capacitor - NEW TS04A Metallized Polyester Film Capacitor - Axial - Cycloidal TS04B Metallized Polyester Film Capacitor - Axial - Oval TS04C Metallized Polypropylene Film Capacitor - Axial - Cycloidal TS04D Metallized Polypropylene Film Capacitor - Axial - Oval TS05 Metallized Polyester Film Capacitor - Mini Box TS05D Metallized Polyethylene Naphtalate Film Capacitor - Stacked SMD TS05M Metallized Polyhenylene Sulfide Film Capacit...
SH Capacitor CBB65/CBB61/CBB60
SH capacitor CBB65/CBB61/CBB60 ***** voltage(VAC):200, 250, 370, 400, 440, 450 ***** capacitance (MFD) :More than 1μF
Capacitor CBB65/CBB60/CBB61
Detailed Product Description capacitor, AC capacitor, motor capacitor, AC motor capacitor, film capacitor, capacitor CBB65, CBB60, CBB61, film capacitor 1)Rated voltage:200V, 250V, 370V, 400V, 440V, 450V 2)The motor capacitor used in air-condition and high power illuminator Features: The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced. Applications: Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of ...
Metalized Polypropylene Capacitor Film
Metalized Polypropylene Capacitor Film Inner diameter: 75mm Outer diameter: 150~300mm (The specific diameters can be customized. ) Thickness: 4, 5, 6, 7, 8, 9, 10, 12um
Plastic Capacitors / Film Capacitors (SRB)
1. GENERAL TECHNICAL CHARACTERISTICS Dielectric: Polypropylene film Construction: Extended metallized film with internal series connection and metallized film Coating: Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0 ). Leads: Tinned copper wire, 2 leads, 4 leads, 6 leads 2. ELECTRICAL CHARACTERISTICS Operating temperature range(case): - 40 to + 85 c Capacitance: 0.1 to 60μ F Rated Voltage: 330 to 850 Vdc Tolerance: � 5%, � 10% Dissipation factor: Measured at 1000� 20 Hz AND 25� 5c. When Cr≤ 5.0μ F, 6� 10-4; When Cr>5.0μ F, 10� 10-4 Life expectancy: 100, 000 hours at Un and 70c 3. TEST METHODS AND PERFORMANCES Dielectric strength: 2Ur (DC) applied for 10s at 25� 5c (1 minute for type test) Test voltage terminal to case: 3 KV 50Hz for 60sec Insulation resistance (C*Ri): ≥ 5000 s
Al/Zn Metallized Film For Capacitor
***** Al/Zn Metallized film Al Metallized film Safety Anti-explosion Film 2.Application Applied to capacitors for power system, refrigerators and air conditioners Construction 3.Aluminum/Zinc film with reinforced edge 4. Metallized Film' s Specification item unit nominal value roll mm roll diameter inner diameter 76 outer diameter 150~300 (The specific diameters can be customized. ) thickness um 4 5 6 7 8 9 10 12 width mm 30 35 37.5 40 45 50 55 60 65 70 75 80 85 90 95 100 115 120 125 130 14 17.5 21 26 margin value mm 2.5 2.0 1.5
Metallized Film Capacitors
metallized film capacitors Product type :AC Motor Capacitors - AC Motor Capacitors Name:CBB65 ***** Item:CBB65 ***** Description: Features and uses: CONSTRUCTION: non-inductive wound metallized polypropylene COATING: Aluminium case filled with oil RATED VOLTAGE: 180VAC~~~450VAC(250V/370V/400V/440V/450V) LIFE EXPECTANCY: CLASS B-10.000h /CLASS C-3, 000h RATED FREQUENCY: 50/60Hz RATED CAPACITANCE: 2uF-100uF CAPACITANCE TOL.: +-5%, +-10% (standard), other tolerances upon request CLIMATIC CATEGORY: 40/85/21 (IEC 60252) OPERATING TEMP. RANGE: -40/+85C CASE: Aluminium TEST VOLTAGE TERMINAL TO TERMINAL: 2.0 x Un for 60s (Un: rated voltage) TEST VOLTAGE TERMINAL TO CASE:>= 2000VAC for 60s SAFETY CLASS:P1/P2 MAX. PERMISSIBLE VOLTAGE (RMS):1.1 x Un MAX. PERMISSIBLE CURRENT (RMS):1.3 x In MAX. PERMISSIBLE REACTIVE OUTPUT: 1.35 x Qn Approvals: UL, VDE, TUV, CSA, CQC Product type:AC Motor Capacitors - AC Motor Capacitors Name:CBB61 ***** Item:CBB61 ***** ...

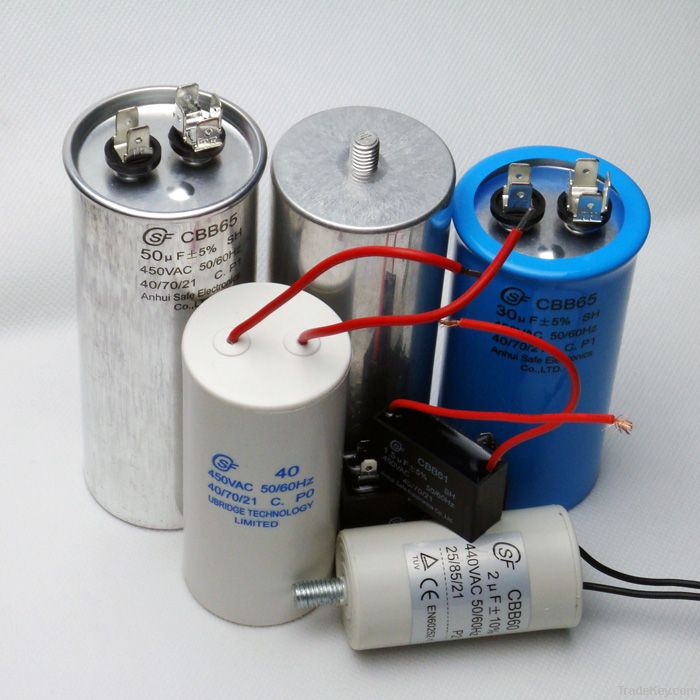

Metallized Polypropylene Film Capacitor
Rater Voltage:250V~~~500V Life Expectancy: CLASS A-30.000h 400/420VAC CLASS B-10.000h 450/470VAC CLASS C-3, 000h 500 VAC Rated Frequency: 50/60Hz
Polyester Film Capacitor
Capacitors & electronic component & film capacitors Characteristic: Uses the metallization polyester film volume system to become. Directs bidirectional way extremely. Has the good self-recovery, the volume is small, the capacity big, the thermostable performance is good, the reliability is high. Use: widely uses in the broadcast television product, each kind of instrument and in communication equipment's cocurrent and the pulsation electric circuit. Major technique parameter (GB7335-87, SJ/T10874-1996) 1) nominal capacity �5% (J), �10% (K), �20% (M) 2) loss tangent value ≤0.01 (1KHZ/20) 3) pressure resistance ≥1.6UR, 1S 4) dielectric resistance CR≤0.33μF: ≥7500MΩ CR>0.33μF: ≥2500MΩ . Characteristic: Uses the metallization polyester film volume system to become. Directs bidirectional way extremely. Has the good self-recovery, the volume is ...
Ceramic Capacitors
Company products are as follows: *Film capacitor series X2Anti-interferen Capacitors, Metallized Polypropylene Film Capacitors;Metallized Polyester Film Capacitors;Power ***** *Ceramic capacitor series High-Voltage Ceramic Capacitor NPO Serial ;High-Voltage Ceramic Capacitor SL SerIal ;High-Voltage Ceramic Capacitor B *****
Metallized BOPP Capacitor Film
***** Al/Zn Metallized film Al Metallized film Safety Anti-explosion Film double side metallized with margins at center free margin
Capacitor Polypropylene Film
Item:Polypropylene Film Description: ***** Polypropylene film for type M-PP/S-PP M-PP：Mainly for metallized-film capacitor. S-PP：Mainly for foil-film capacitor. Thickness(micron):4, 5, 6, 7, 8, 9, 10, 12 ***** Polypropylene Rough film type RPP/RRPP Mainly for power, electrothermal and other relevant kinds of high voltage capacitors designed as foil-film or foil-film & paper with oil-impregnation. Thickness(micron):6, 8, 9, 10, 11, 12, 13, 14, 15, 18
Run Capacitors
We are manufacturing & exporting ac capacitors for fans, motors, single phase panels & all other applications.
