10 ton Waste Tyre Pyrolysis to Fuel Oil Equipment Scrap Tire Recycling Machine

China

HNJZ-10 Waste Tyre Pyrolysis to Fuel Oil Equipment

( Negotiable ) Get Latest Price

China

-

1 Set

naked package

30 days

50 Set per Month

T/T, L/C, Western Union

Contact Now

Product Specification

Item : Waste Tyre Pyrolysis to Fuel Oil Equipment Raw material : waste tyre/rubber/plastic Capacity : 10ton, 20ton, 30ton Operating Pressure : Negative Pressure Fuel : Coal,wood,gas,electric Structure : Horizontal Rotation output product : fuel oil, carbon black, steel wire and gas Rotation speed : 0.8r/min thickness : 14mm,16mm output oil as tyre : 45% Model of cooling : Water cooling

Product Description

10 ton Waste Tyre Pyrolysis to Fuel Oil Equipment Scrap Tire Recycling Machine

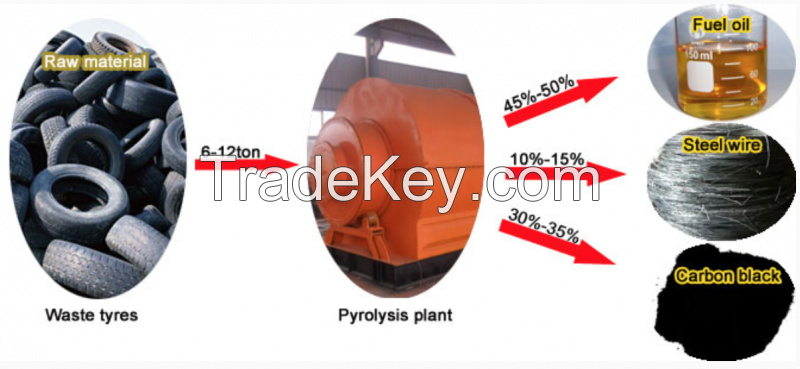

Scrap Tire pyrolysis plant can be used to refine oil by using waste tyre, waste plastic and rubbers recycling to crude oil, carbon black, steel wire and gas, and then after distillation will get diesel oil. Heating materials can usewood, coal, fuel oil, nature gas and electricity. They are widely used in hotels, restaurants, bathing center, power plant, engines and chemical sector and so on.
Working proccess of the waste tyre pyrolysis plant
1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically
Specification of Waste Tyre Pyrolysis machine
Parameter
Used tyre Pyrolysis Machine
Capacity
5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPD
Reactor Material
Q345R, Alloy Steel, Stainless Steel
Reactor Thickness
16.45mm, 18.45mm
Total Weight
30-40 tons (Varies by Design and Capacity)
Working Power
15-30KW(Varies by Design and Capacity)
Labor Qty Require
2-4 Persons for per set machine, more machine, fewer labors
Processing Time
Feeding 2 Hours, Processing 8-9 hours, Carbon Black and Steel Wire Discharging 1.5 hours. (Take 12TPD capacity as example)
Application Material
Waste Tyre, Waste Rubber, Waste Plastic, Waste Oil Sludge, Waste Aluminum Foil, Waste Cable, Waste Leather, Waste Acrylic(PMMA),etc...
Heating Fuel
Pyrolysis Oil, Natural Gas, Electricity, Coal, Firewood, etc...
Final product application

Carbon black: used for construction bricks with clay also can be used as fuel.
Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. or used for generators to get electricity.
Steel wires: Sold or reprocessing
Combustible gas: Can be recycled and used during process as fuel.

Pyrolysis machine advantage and main technical characteristics
1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil.
diversiform cooling system can be choose according to client's willingness
3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray .more environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm 16mm,
guarantee  4-7 years service lives. and optional plate is Q345R
6.  OptionalAuto feeder and carbon black discharge elevator, high automation, saving time and labors.
7.  Eco-friendly and no any population, environmental protection

1.The size for the equipment :
Device itself covers an area of 300 square meters (25 meters long / 12 m wide), and covers an area of raw materials, end products piled up, simply rest area, office area and workers need about 600-800 square meters.
2.Operation personnel quantity:
Artificial feeding: need 3-4 workers
3.Quarantee:
Overall quality assurance two years (except wearing parts under normal operation, free maintenance), life-long maintenance. Host the Q245R boiler steel plate, can bear high temperature 700 ℃.


  10 ton Waste Tyre Pyrolysis to Fuel Oil Equipment Scrap Tire Recycling Machine
