0.5-4.5V Integrated Temperature and Pressure Sensor Automotive Pressure Transducer for New Energy

Product Description

WNK**5PT is an integrated temperature and pressure sensor that can

measure temperature and pressure at the same time.

The temperature is a set of NTC thermistor signals. The NTC temperature

sensor is protected by a metal shell. The sensing element does not contact

the measured medium. The resistance signal line is directly connected to

the PCB board through the lead, which solves the temperature

measurement failure caused by vibration and corrosion.

The pressure is a 0.**4.5V voltage signal. The pressure sensor uses a

diffused silicon metal diaphragm oil-filled process and a fully welded sealing

process to eliminate the risk of leakage caused by the sealing performance

of the sealing ring and the corrosion of the sealing material by the

measurement medium. The measured The media applicability is wider. This

pressure sensor has high temperature stability and accuracy and is mainly

used in new energy vehicle thermal management systems, air conditioning

and other fields.



Product model: WNK**5PT

Pressure range: 0~5...*0bar, customizable

Temperature range: **0℃~**0℃

Accuracy: 1%

Pressure type: gauge pressure, absolute pressure, sealing pressure

Output: 0.5~4.5V, (*0%**0%Vcc), others

Power supply: 5V DC

Pressure interface: G1/4, M*2x1.5, M*0x1, (can be customized)

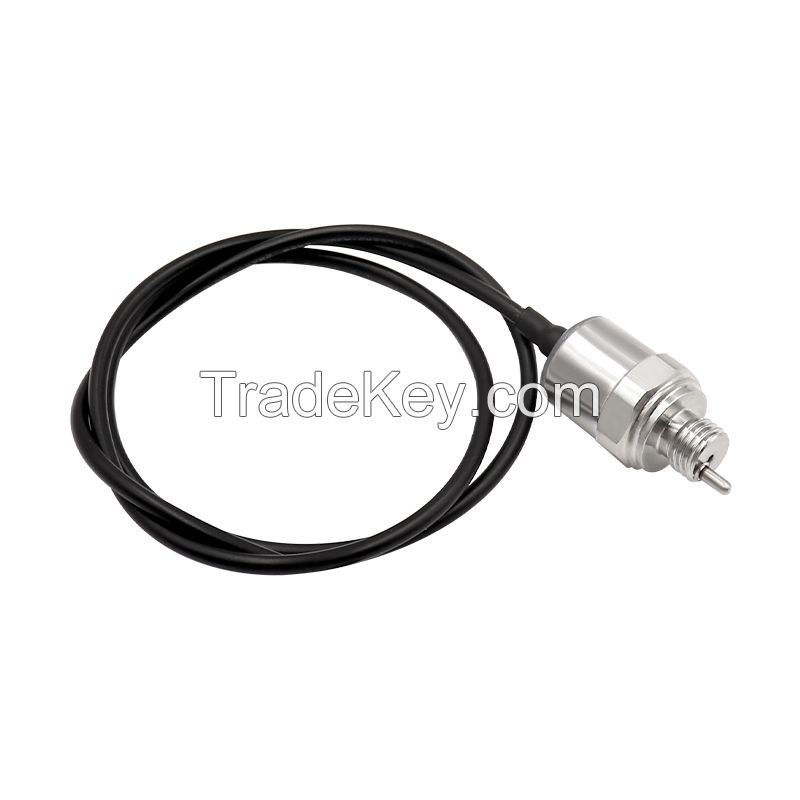

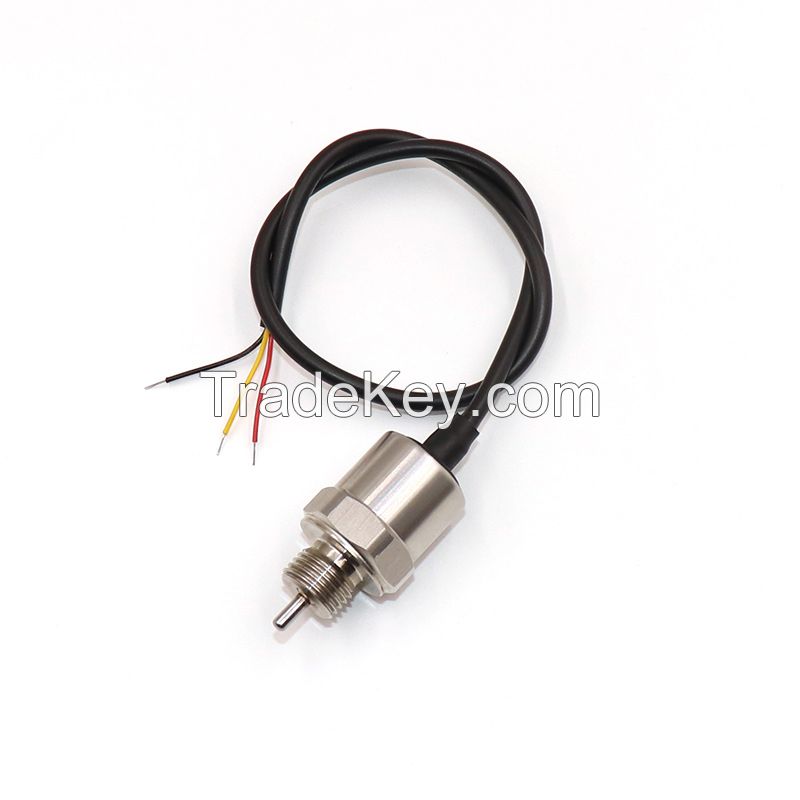

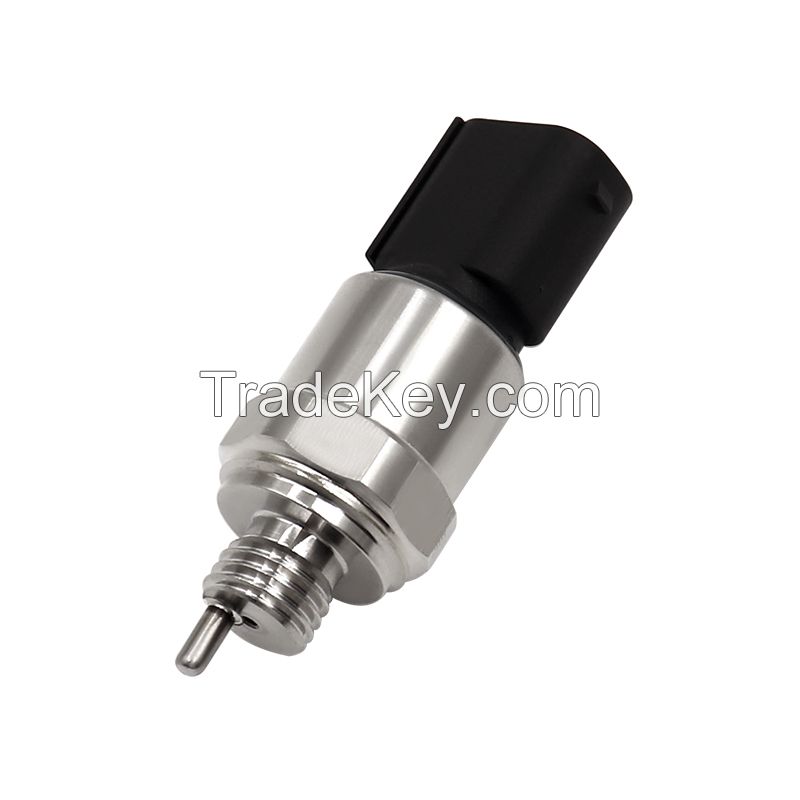

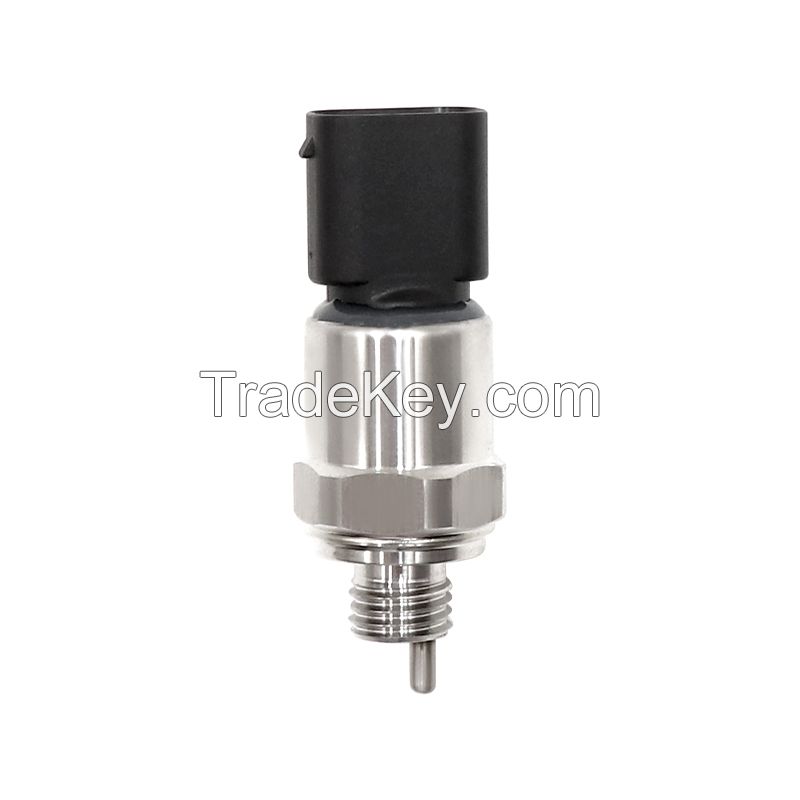

Electrical connection: TE *********1，Cable outlet

Application fields: Mainly used in new energy vehicle thermal management systems, HVAC and other fields.
