AEB MP48 4 cylinder, Alternative fuel device cng lpg conversion kits for multipoint sequential ECU

Product Description

AEB MP48 4 cylinder Alternative fuel device cng lpg conversion kits for car Injection control unit  multipoint sequential  ECU

LPG/CNG Multipoint Sequential Injection conversion kit MP48 ECU, Bi-fuel conversion system, MP 48,lpg conversion kit,cng kit

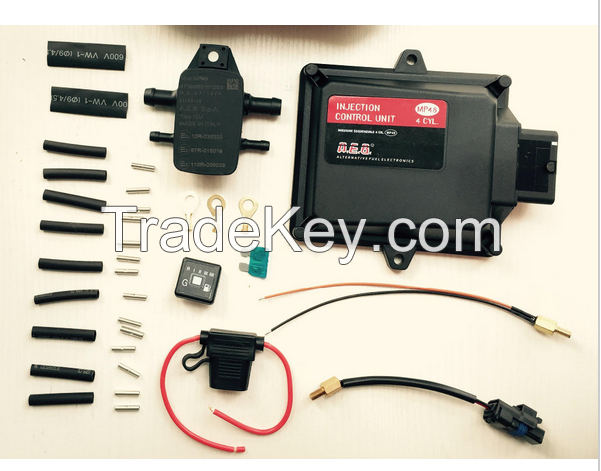

      MP48 ECU for 3/4cylinder engine consists of  5 parts:

    Main Control Unit

02  Brief Introduction of MP48 ECU:

Mp48 is a well-known, high -performance and reliable fuel conversion ECU.

Mp48 ECU is disigned for 3/4 cylinder multipoin timed sequential injection engines. While runing on gas, Mp48  detec ts the pertrol injection time and pressure on the rail.It will calculate the equivalent amount of gas to be injected in the intake manifold to replicate the  performance of the engine running on petrol.  MP48 is equipped with a diagnosis system on every Gas component,whose status can  be monitored by the calibration software during the installation of the system and at any time of the engine lifetime .The feature may prevent malfunctioning problems and makes technical interventions easier.

    In addition, the calibration tool makes it simplified to install and set, and much cost is reduced.

   MP48 is equipped with a 48-PIN connector, with IP54 high protection against water infiltration, it is easier for cable connection/ disconnection.




03  Technical Parameters of MP48 ECU:

         Coil Resistance: over 0.5Ω

         Injector Emulation Resistance: 150Ω

        Ambient Temperature: -40~105 degrees

        Waterproof Level: IP54 water Resistance

        Connection: 48 Pins
