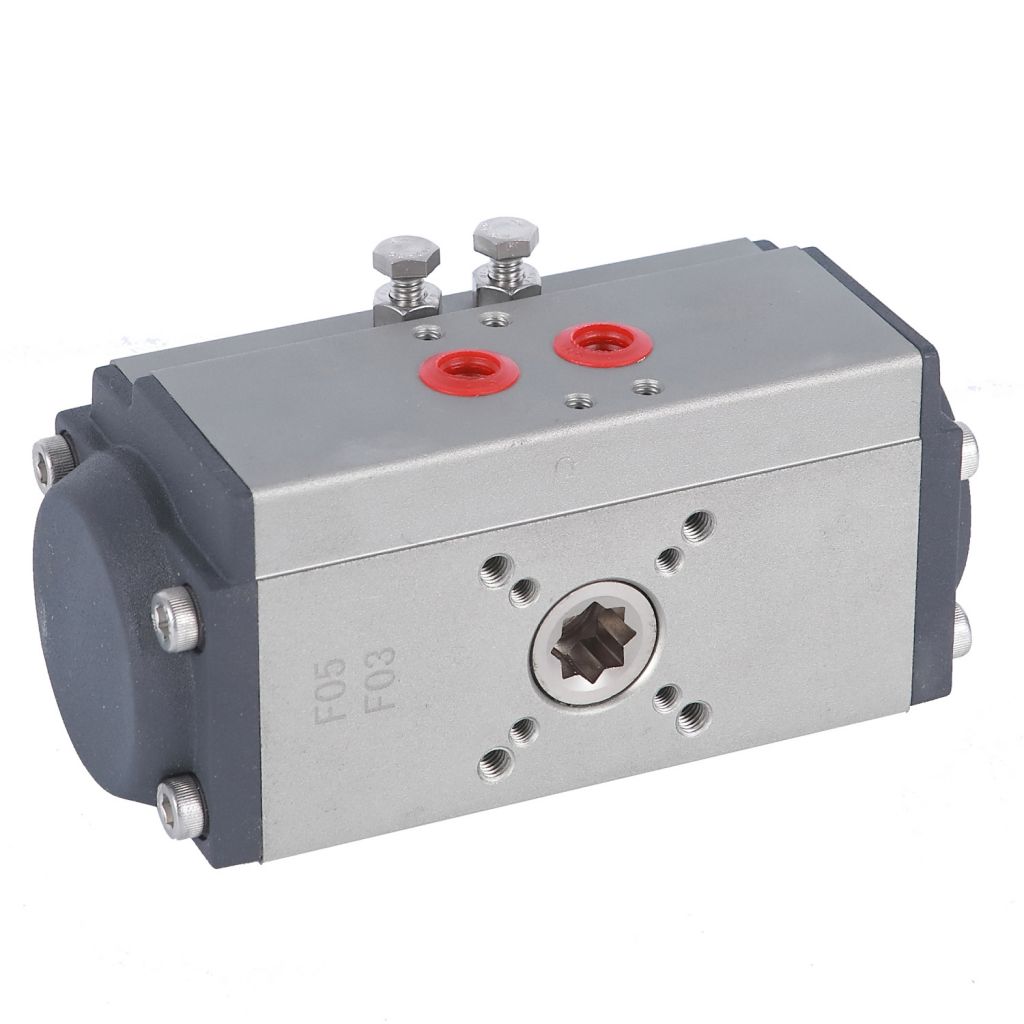

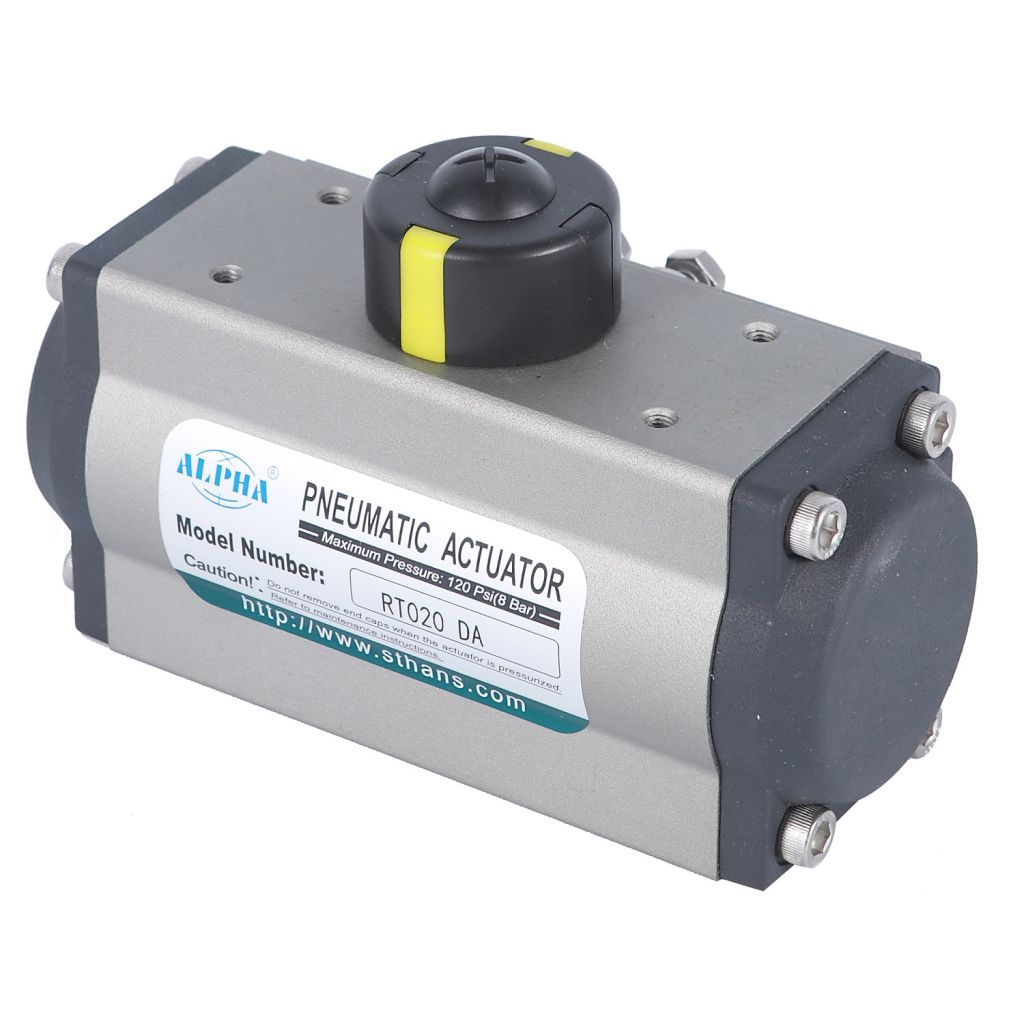

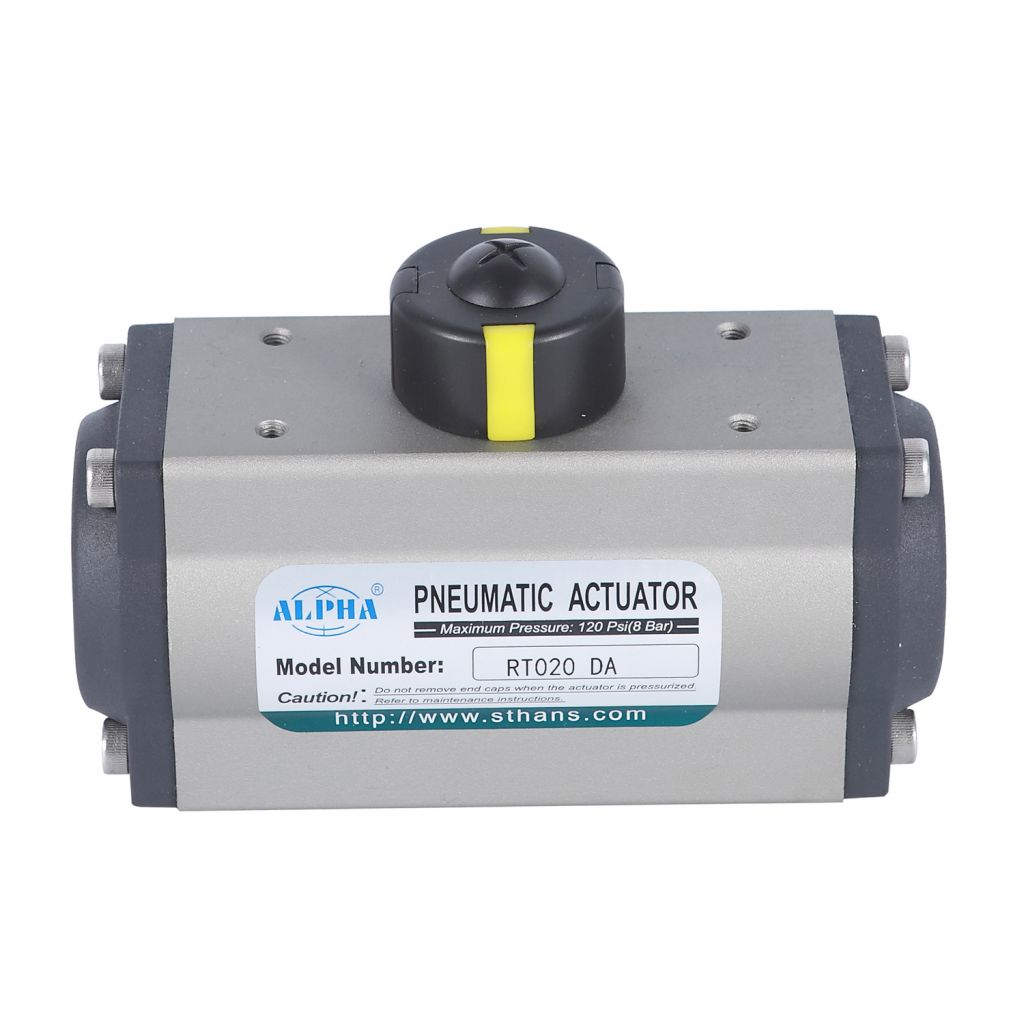

ALPHA C series C40 alloy pneumatic actuator
FOB Price:
( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
-
Minimum Order Quantity:
1 Set
Packaging Detail:
Wooden box
Delivery Time:
in a month
Supplying Ability:
10000 Set per Month
Payment Type:
T/T, L/C
Product Group :
Contact Person Mr. Alan
mei cun new district, Wuxi, Jiangsu
(1)Construction
1.Die-cast aluminum (ASTM***5) body, can be treated with anodized,
epoxy, PTFE or Nickel plated. Inner surface fine grinding
process, both internal and external use advanced anticorrosion
technology, cylinder friction coefficient is small, long service
life.
2.Die-cast aluminum end caps can also be treated with PTFE, Nickel
plated.
3.Nickel plated alloy steel or stainless steel output shaft.
4. Rack & pinion design, symmetrical installation position,
easy to change the output shaft steering, quick action.
5.Antifriction sliding bearings.
6.Stainless steel fasteners.
7.Fully in line with international standards: NAMUR, ISO***1,
DIN***7.
8.Rotation angle : *0° ± 5°. Pneumatic actuators of
different stroke can be customized as required (e.g. **0°, **5°,
**0° etc.)
(2)Double acting actuators
CCW
Air to Port A forces the pistons outwards, causing the pinion to
turn counterclockwise while the air is being exhausted from Port
B.
Air to Port B forces the pistons inwards, causing the pinion to
turn clockwise while the air is being exhausted from Port A.
CW
Air to Port A forces the pistons outwards, causing the pinion to
turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to
turn counterclockwise while the air is being exhausted from Port
A.
Spring acting actuators
CCW
Air to port A forces the pistons outwards, causing the springs to
compress, The pinion turns counterclockwise while air is being
exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs
forces the pistons inwards. The pinion turns clockwise while air is
being exhausted from port A.
CW
Air to port B forces the pistons outwards, causing the springs to
compress, The pinion turns counterclockwise while air is being
exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs
forces the pistons inwards. The pinion turns clockwise while air is
being exhausted from port A.
(3)Specifications
1. CE and ISO certificate
2. Strictly quality control
3. Good quality at a favorable price
4. Excellent After-service
5. Fast delivery time
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~*0 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature |
Normal Temperature: **0ºC(*4°F) ~ *0ºC (***6°F) High Temperature: **5ºC(*5°F) ~ **0ºC (***2°F) Low Temperature: **0ºC(***4°F) ~ *0ºC (***6°F) |
| Connection | NAMUR, ISO***1 and DIN***7 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
