CNC Plate Marking, Punching Machine

Product Description

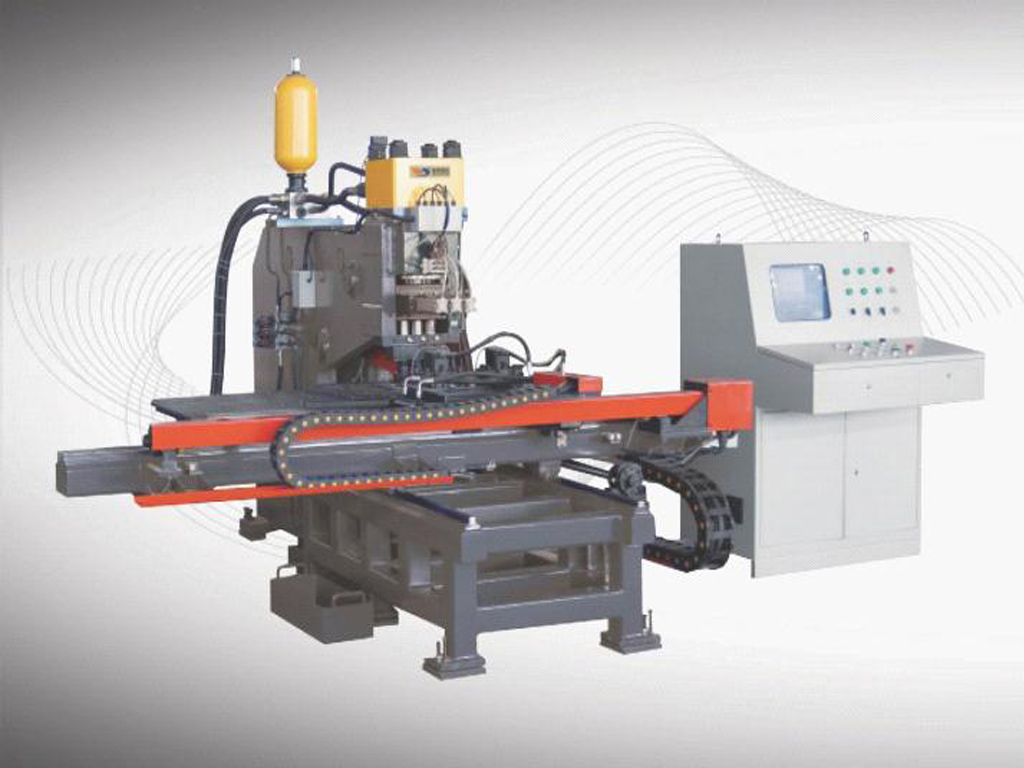

Features： C shape framework features great rigidity and spacious working area. There are three working station. X and Y axis drived by servomotor and ball screw. Stations can change automatically. The clamp system is suitable for workpiece with different thickness. There are stop locater at zero position. Workpiece can be supported by working table wuth rolling balls. The punching position is controlled by bi-axis NC controlling system, The processing date can be into the controlling system and the processing can be done automatically. Advantages： 1. Integrated machine with mechanical, electrical, and hydraulic system. PLC control and servo motor drive. 2. Modular assembling for main functional parts, easy maintenance, self-diagnostic function. 3. Punching, Marking and drilling operations on one plate with less labor force and steady precision. 4. For programming, either punching diameter, position and quantity of workpiece or directly share the date source of design department by the local network. Main Technical Specifications： Item Specifications Unit Note Punching force ***0 kN Marking force **0 kN Thickness range of Punching/drilling 6～*0 mm CPP***0 Max dimension of workpiece ***0×**0 mm Max diameter of punching hole Φ*5.5 mm b=*0N/mm2 Min margin of punching hole *5 mm Apertore<=*5.5mm Number of stations 3 CPP***0 Dimension of character *4×*0×*9 mm Character amount *2 Two lines Speed of character *2 m/min Max diameter of drilling Φ*0 mm Max thickness of drilling *0 mm Feeding speed of principle axis *5～**0 mm （Stepless adjustable） Nonpolar speed regulation **0～***0 rpm （Stepless adjustable） Rotate speed of principle axis **0 mm Power of drilling axis 5.5 kW Process Precision Accordable With GB******1 Criterion Hydraulic system pressure （Low pressure） 5.5 Mpa （High pressure） *5 Mpa Air supply pressure 0.5～0.8 Mpa Total power ≈*0 kW CPP***0 Overall dimensions ***0×***2×***0 mm CPP***0
