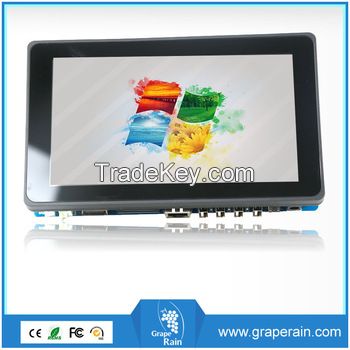

Development Board Embedded Linux System By Shenzhen Graperain Technology Co., Ltd.,

Development Board Embedded Linux System

FOB Price

Get Latest Price

230 ~ 250 / Piece

1 Minimum Order

Country:

China

Model No:

FOB Price:

230 ~ 250 / Piece (Negotiable) Get Latest Price

Place of Origin:

Price for Minimum Order:

230 per Piece

Minimum Order Quantity:

Packaging Detail:

PE + carton

Delivery Time:

15 to 20days after payment received

Supplying Ability:

2000 Piece per Month

Payment Type:

T/T, L/C, Western Union, PayPal

Product Group :

Product Specification

Brand Name: Graperain
Type: Drive Ic
Supply Volatagr: 3.7~5.5V
Operating Temperature: -40Ã¢ï¿½ï¿½~80Ã¢ï¿½ï¿½

Kernel:ARM Cortex-A9
Frequency:1.4GHz
CPU:S5P4418,ARM Cortex A9,4*1.4GHz
Flash:THGBMBG6D1KBAIL,8GB eMMC
RAM:K4B4G1646E-BCK0,DDR3,1GBytes
Dimension:185mm*110mm

Product Description

The G4418 core board takes stamp hole core board and based board. It is so strong expandability, supports 180PIN, running 1.4GHz. PCB designed 8 layers in immersion gold, and is of best electrical specification and anti-interference characteristic, and work stable. It inland PMU, and with coulombmeter chargering, integrating the gigabit ethernet firstly. The core board could be used in MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed.

Samsung EMMC S5P4418 ARM Ethernet Board Mini Project PC

G4418 Core Board Features:

The best size: 68mm*48mm, but enough space for GPIO interface;
Take x-power of AXP228 PMU power management;
Design one single channel DDR3, supports 1GB default, 2GB optional;
Support the power sleep wake up;
Support Android 4.4 operating system;
Onboard the gigabit ethernet;
No program broke, far away trouble of program broke;
Stay seven days for testing procedure, very stable.

G4418 Core Board Hardware Features:

Specifications
CPU			S5P4418,ARM Cortex A9,4*1.4GHz
RAM			K4B4G1646E-BCK0,DDR3,1GBytes
Flash			THGBMBG6D1KBAIL,8GB eMMC
PMU			AXP228
Power			5V DC power supply
Features
On board Network	10/100/1000Mbps ethernet (Realtek RTL8211E)
Bluetooth	Optional
On board Storage	MicroSD (TF) card, SATA 2.0
Display	Supports multi-channel HD display: HDMI 1.4 (Type A - full) LVDS/RGB/CPU display interface (DSI) for raw LCD panels 11 HDMI resolutions from 640480 to 19201080 plus various PAL and NTSC standards Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out)
Video	HD H.264 2160p video decoding Mutil-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 high profile 1080p30fps or 720p60fps encoding
Audio outputs	HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out), I2S audio (also potentially for audio )
Camera	Standard 24 pin camera interface
Audio	On board micphone
USB	4 USB 2.0 host, 1 USB 2.0 OTG
Buttons	Reset Power
Leds	Power status led (red) Ethernet status led (blue) User defined led (green)
Other	IR receiver

Sizes		185mm*110mm
