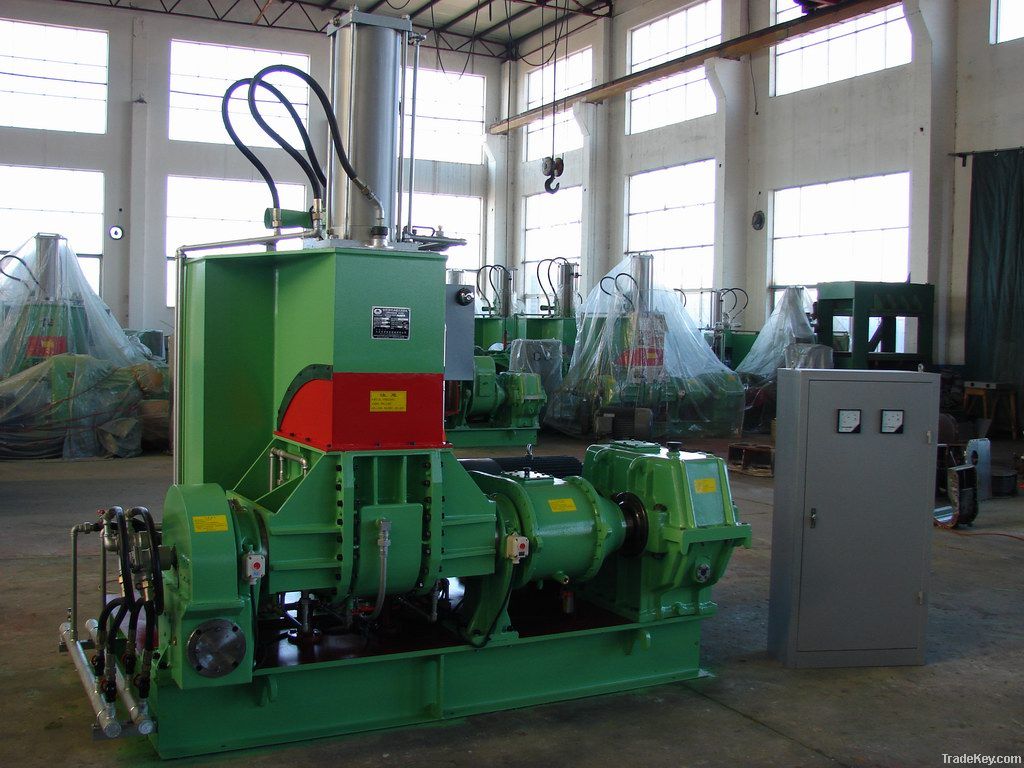

Product Description
Features
1.With completely sealed condition, materials are mixed or
plasticated under certain pressure, controllable temperature,
which makes high production efficiency and obtains
excellentstable quality.
2.Spiral angle and over lapping length of the blades of the
rotors are of reasonable design and make the materials to
bedispersed uniformly.
3.Surface where is contacted with the materials are all
platedwith hard chromium and polished, which is
corrosion-resistantand wear-resistant.
4.Jacket construction is adopted in parts that surfaces
contactwith materials to achieve excellent water-cooling or
steamheating effect and fit in with the needs of plastics and
rubberprocessing technology.
5.Feeding from back door on the frame(or a separate top
door)is convenient for continuous process operation in
aproduction line. The mixing chamber is able to turn forward by
**0 aroud the front rotors to discharge and is easy for
changingpigments and cleaning the chamber.
6.Programmable logic controller(PLC) is adopted in
theelectric-control system, which has reliable control function
andalarm function, and interlock safety-protection function and
itis provided with serial interface of net.
Structure
1.MiXing chamber
It consists of a "W" shape body and two side boards made of high
quality steelplates by means of extrusion forming and welding,
which are jacked to take the flow of cooling water or steam. It
is plated with hard chrome on its internal walls.
2.Thermal Resistance
There is a plug-in thermal resistance in middle section of
thebottom of the chamber to be connected to electrical system to
inspect and display the temperate.
3.Rotor
It is designed to the hollow blades of Banbury type. The hollows
are connected with axial hole of rotor shaft used as cooling or
heating passage. The top edges of blades and the end faces of ?
rotor shaft are surface welded with cobalt-base hard alloy and
grinding, then plating with hard chrome and polishing.
4.Cooling/heating system
A common piping system is adopted for either cooling or heating
material in mixing operation. Through the system cooling water or
steam is fed in three ways to the cavities of the rotors blades,
the jickets of the mixing chamber and the topram.
5.Tilting mechanism
It consists of a rotor with brake, cycloidal gear reducer, TP
type worm and worm gear,etc. It is able to actuate the mixing
chamber tilting by **0° around the front rotors.
6.Dust sealing device
At the joint between the top of the mixing chamber and the
cantilevered arm of the machine frame, the dust sealing assembly
with curved slotted partings are used obtaining an excellent and
reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with
nor oil-labrication and is seals well and is wear-resistant and
durable.
7.Main driving system
The part is made up with main motor, reducer, connecting gears.
It realizes odd-speed rotation of the rotors with running face
one other.
8.Pneumatic control system
Pneumatic control system is controlled by PLC order. A
bi-directional air cylinder make the ram up or duwn. In case the
over load occurs in the mixing chamber, the top ram can be raised
automatically or manually if necessary, so as to protect motor
from overload.
9.Electric control system
Imported PLC device and electric control components which are all
imported products or imported technology products are adopted in
the elctric control system as to raise control reliability.
| Country: |
China |
| Model No: |
X(S)N-35X30, X(S)N-55X30, X(S)N-75X30
|
| FOB Price: |
1000 ~ 100000 / Set ( Negotiable ) (Negotiable)
Get Latest Price
|
| Place of Origin: |
China |
| Price for Minimum Order: |
1000 per Set |
| Minimum Order Quantity: |
1 Set |
| Packaging Detail: |
Export standard packing or according to customer's demand |
| Delivery Time: |
with in 20 days after receipt of advance payment |
| Supplying Ability: |
25 Set per Month |
| Payment Type: |
- |
| Product Group : |
Rubber kneader
|
