Product Description

Machine major components:

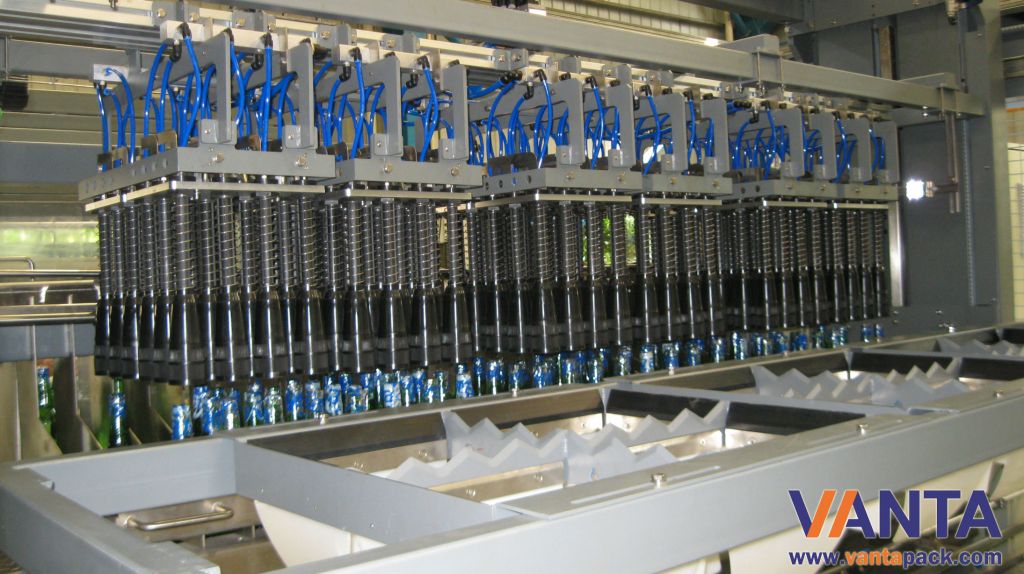

1.   Grippers

2.   Arm swinging and lifting device

3.   Bottle vibrating

4.   Bottle pressing

5.   Bottle infeeding

6.   Main frame

7.   Case feeding

8.   Bottle guiding device

9.   Bottle guide plates

*0. Protection

*1. Quick case feeding

Technical parameters:

1．Model：WSD-HZX**0S

2. Technical character:

2.1.1 Capacity: *5,*****8,**0bph

2.1.2    packing type：

（1）Carton

2.1.3 Bottle type：glass bottle

 （1）diameter of bottle : *0~*5mm（different pick heads need according to different bottle）

（2）height of bottle : H**0~**0mm

2.1.4 Carton dimension

（1）L**0~**3mm  (2)W**0~**2mm  (3)H**0~**9mm

3．Other characters:

3.1 machine：***0 mm（L）X***5mm（W）X***7mm（H）

3.2 power: 5.5KW

 3.3 power supply: **0/**0V

3.4 compressed air （a）pressure：0.6~0.8MPa （b）consumption：**0NL/min

3.5 weight：2.9T

3.6 equipment noise：≤*5db

3.7 grass bottle wastage：≤0.2%

  3.8 eligibility：≥*8%

4. Characters:

1.   The bottle gripper device driven by two motors, one motor at the direction of up and down, another motor at the direction of front and rear drive stably, eliminating the precise disadvantage of four-link decrater, making the bottle grippers device no vibration while decrating, precise positioning.

2.   There is clump weight inside the arm swinging, balancing the weight of bottle gripper, reduce the power of lifting motor.

3.   All motors are SEW brand.

4.   Camozzi pneumatic components.

5.   Bottle vibrating device driven by cylinder, making bottles group by force, reducing the rate of bottle falling.

6.   Case guiding frame positioned by cylinder, gear and pinion synchronization, to ensure bottle guiding frame stably and synchronously.

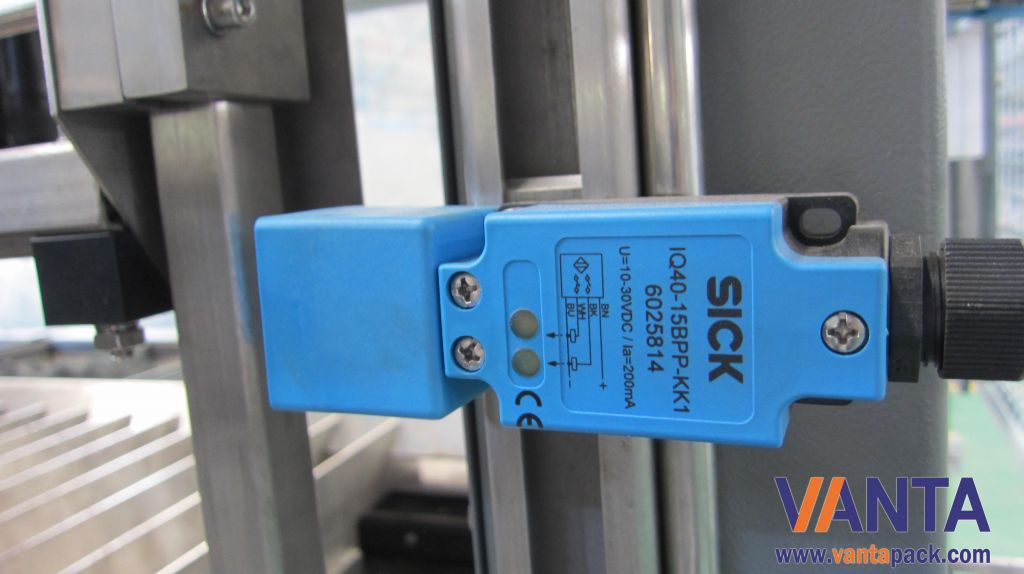

7.   Bottle gripper driven by cylinder, position limiting plate for position limitation, making the gripper grasping and releasing bottle more accurate.. There is bottle gripper protection mirror reflection sensor on the beam of bottle gripper device, when it’s abnormal for bottle grasping and bottle releasing, mirror reflection sensor detects the abnormality, the machine will stop then to protect the bottle grippers.
