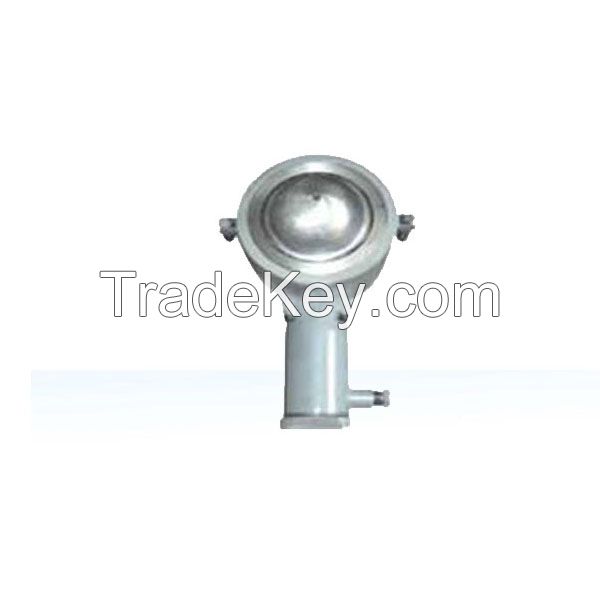

GZD120 weighing sensor

Product Description

GZD120 weighing sensor is suitable for coal mine with coal dust, gas explosion hazardous environment, as the hopper container weighing main shaft quantitative bin and belt conveyor system. GZD120 weighing sensor has the characteristics of small volume, lateral pressure is strong, wide measuring range, high stability, maintenance free.

Weighing scale：0~120t ±0.2%

Working voltage：DC≤18V

Working current：≤20mA

Output signal：4~20 mA

Weight and size

Weight：50kg

Size：240mm×421mm×220mm

1. The weighing sensor can work normally under the following conditions:

 Ambient temperature：0℃~+40℃

 Relative humidity：≤95±3%（+25℃）

 Atmospheric pressure：80kPa~106kPa

Working in underground coal mine with explosive gas.

2. Design feature

The weighing sensor consists of cylinder, piston, hydraulic oil and transmitter components, compact structure, firm and durable, convenient installation, flexible use,stable performance. Device protection grade: IP65

3.Operational principle

Weighing sensor using pressure transducer as an element of the pressure (called the object's gravity) into a weak signal, signal after amplification processed into standard 4~20mA signals, the current dependence of transmission to the analog signal equipment associated with the PLC end, as the measurement control signal.
