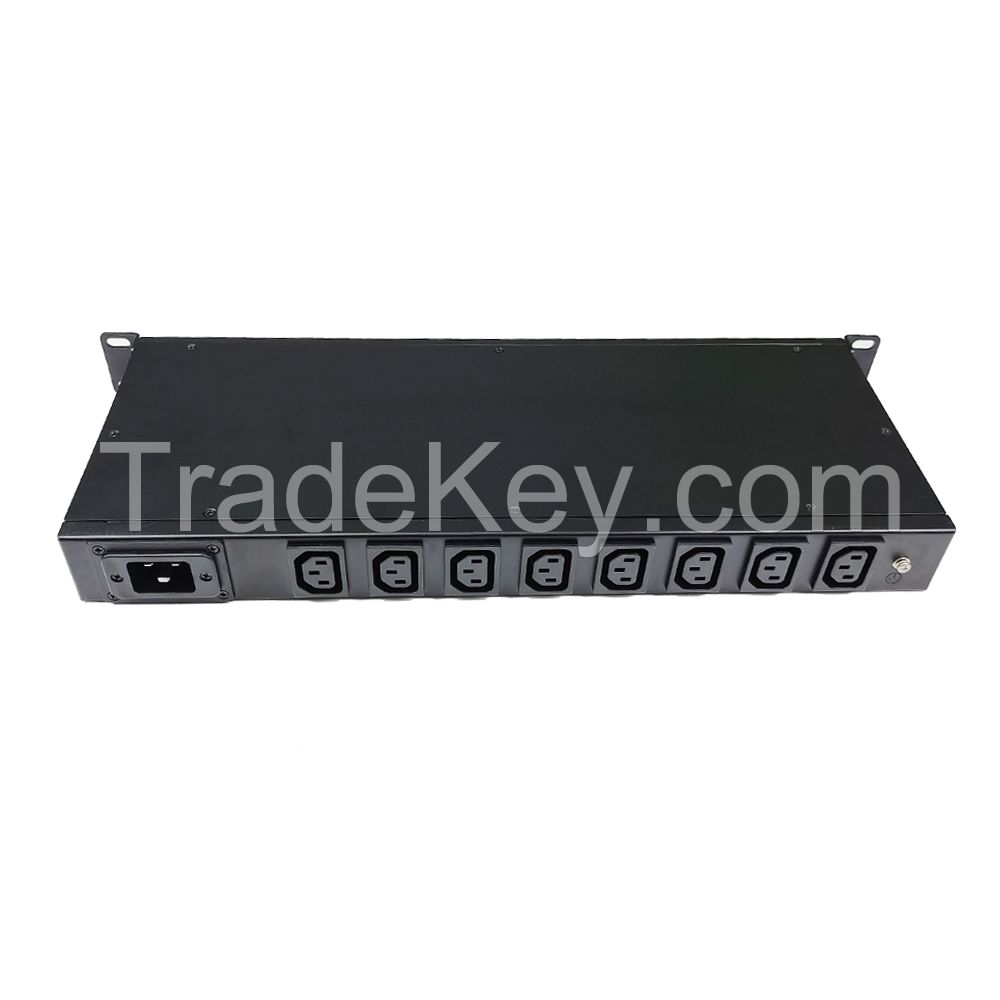

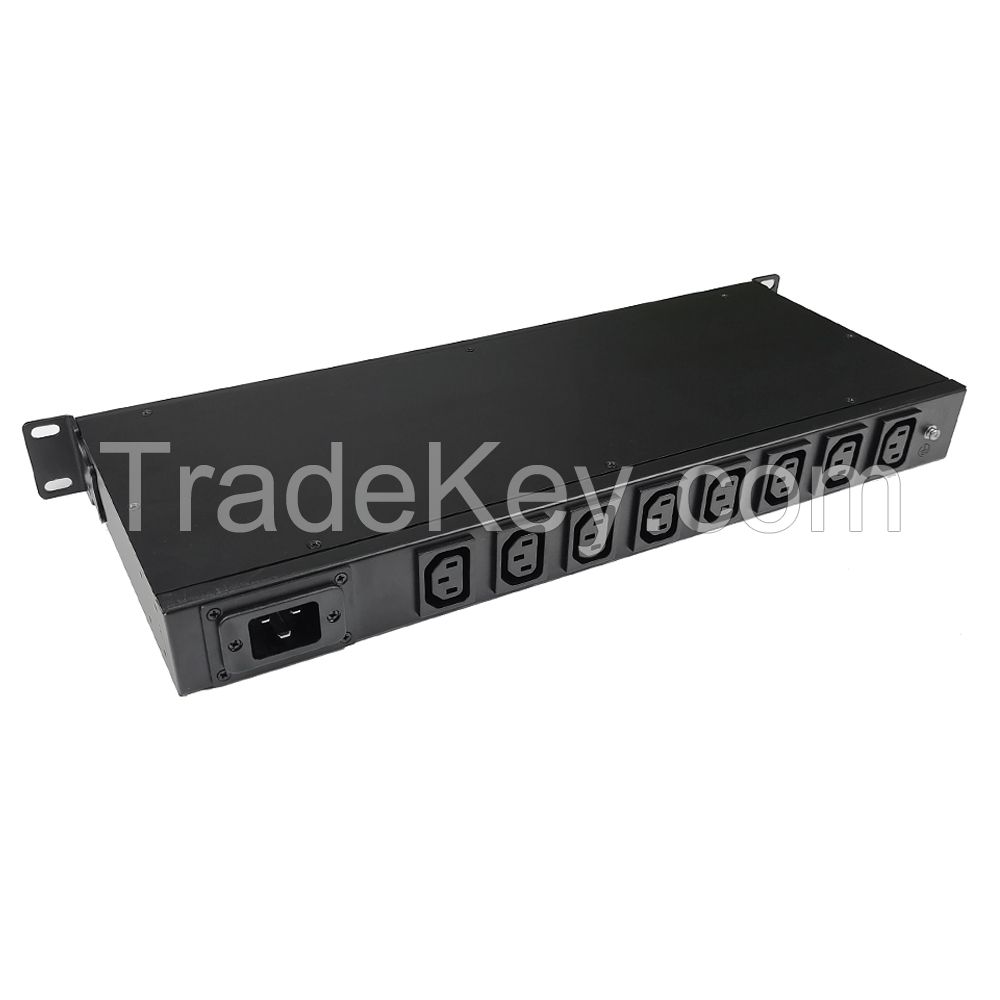

Kdee IEC C13 Bitcoin Secured Intelligent Metered-by-Outlet Rack PDU for High Security Environments 16A 200V Power Distribution Unit

Product Description

KD*-C**-DPDU******- *-fold switched and outlet-metered PDU

Monitoring function:
You can view the monitored total load current, total voltage, total power, total energy, power
factor, load current of each independent unit, and on/off status of each independent unit through
the LCD panel display interface with s and network.

Cascading communica
RS***5 communication cascading is recommended to connected up to 4 instruments to ensure the validity of safety data. Coomon shielded twisted pairs can be used for communication cables, when RS**5 communication cables are routed outdoors, attendion should be paid to the grouding of the cable shielding layer, the total length of the communication cables should not exceed ***0m, The positive and negative polarities of the RS***5 ports of each device must be connected correctly, if the shielded twisted pair is long, it is recommended to connect a **0Ω at the end and reduce the transmission rate to improve the reliability of communication.

Relay control
Relay control includes group (virtual group) control, individual relay control, and relay timing control,
Users can customize a maximum of 8 relay groups, and support the combination of master and slave devices into one group.

After the setting is complete, you can view in the group interface that there are 3 devices in group 1, and click "disconnect" or "close" in the action to control the relay status of the current group at one time.

The socket also supports over-limit setting. When the current of the current socket is lower than the set minimum value or greater than the set maximum value, the current socket will operate the relay according to the over-limit action set by the user.

Network Settings
Network Settings include IP address settings, SNMP settings, web page login method settings, email settings, upgrade settings, Modbus settings, client/server settings, Telnet settings, etc.
Email : The mailbox supports sending alarm emails to the specified mailbox through smtp, and only supports port *5 by default

Multiple alarm methods:
Local buzzer buzzer; red font on the web page reflects abnormal information, LCD screen pops
up abnormal information page; automatically sends E-mail to the system administrator; SNMP
sends Trap alarm status information; abnormal output unit green light Flashing alternately with
orange light


An intelligent, smart PDU has additional metering funcitons after being installed in the main body of the PDU.
User-programmable alarm thresholds reduce risk with real-time local and remote alarms that warn of prtential circuit overloads. Intelligent power distribution units can monitor data interfaces and control and switch them via Ethernet access or RS**5.
