Main Distribution Board

Product Description

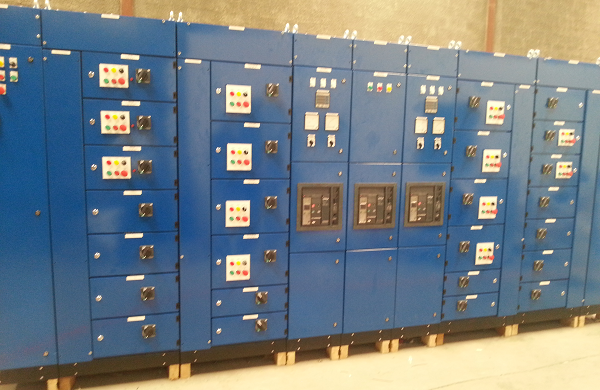

MAIN DISTRIBUTION BOARDS

SHADES considers itself as the best distribution boards manufacturer on the grounds on its expertise in the field. A MDB is comprised of a free standing enclosure, a bus bar system, MCCB’s, metering and support equipments and required current transformers. Panels are assembled in a systematic manner such as incomer section and outgoing section.

The MDB is designed to have a continuous current rating and enough short circuit rating and are designed to accept bottom entry of cables accessible from the front. Frame works and panels are treated with epoxy, epoxy-polyester paint or with a surface treatment. They are well designed for the use in the electrical application for any industrial and commercial buildings.

SPECIFICATIONS

Rated Voltage                            : Ue – UP TO **0V

Rated InsulationVoltage         :**0V

RatedCurrent                             : **0…. ***0A,

Main Bus Bar Ratedcurrent    : **0… ***0A

BranchBus Bar Rated current : **0… ***0A

Short Time With Stand             : *6kA TO*5kA/ 1Sec

Design Standard : IEC

Bus Bar Standards : HCHD Copper Tin Plated

Enclosures: Form II or FormIV
IP:                  IP*4 to IP*5.
