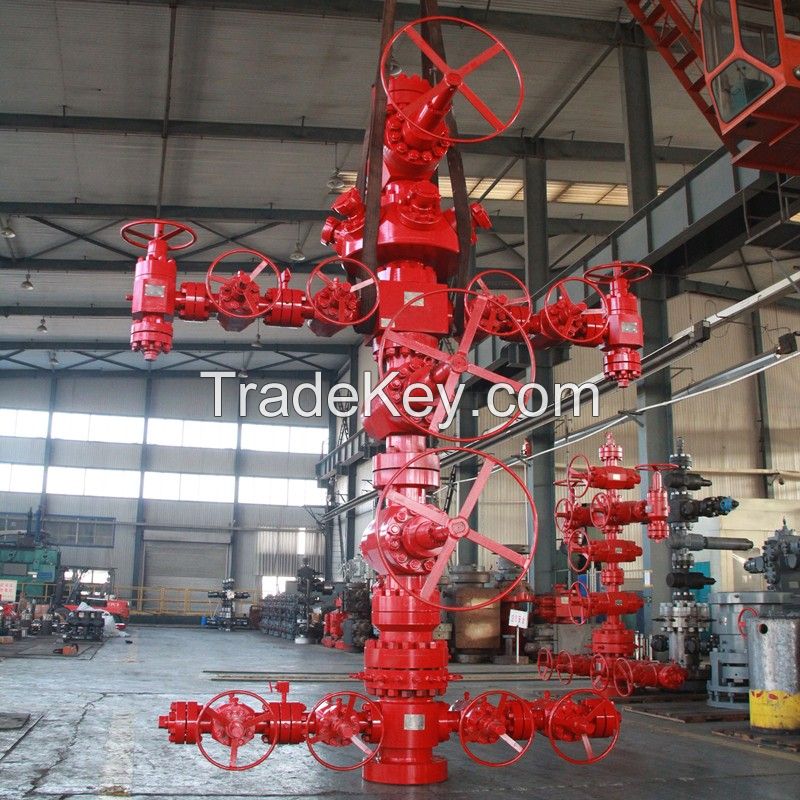

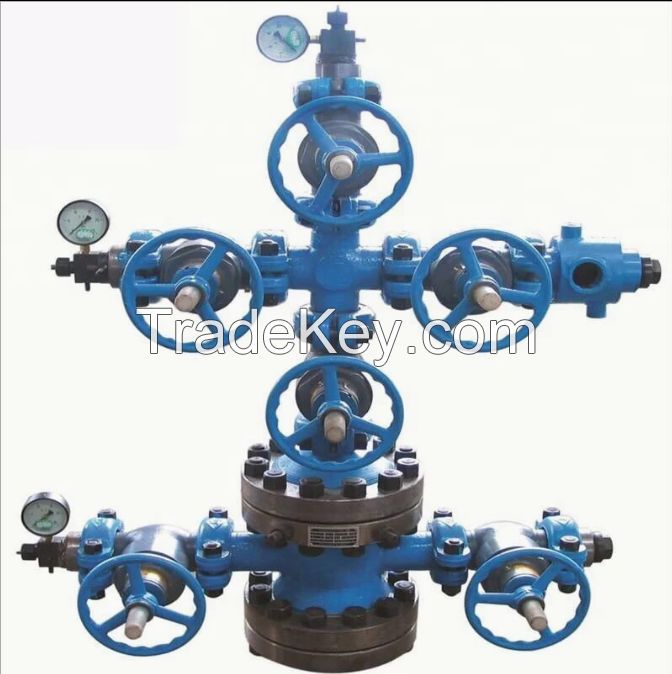

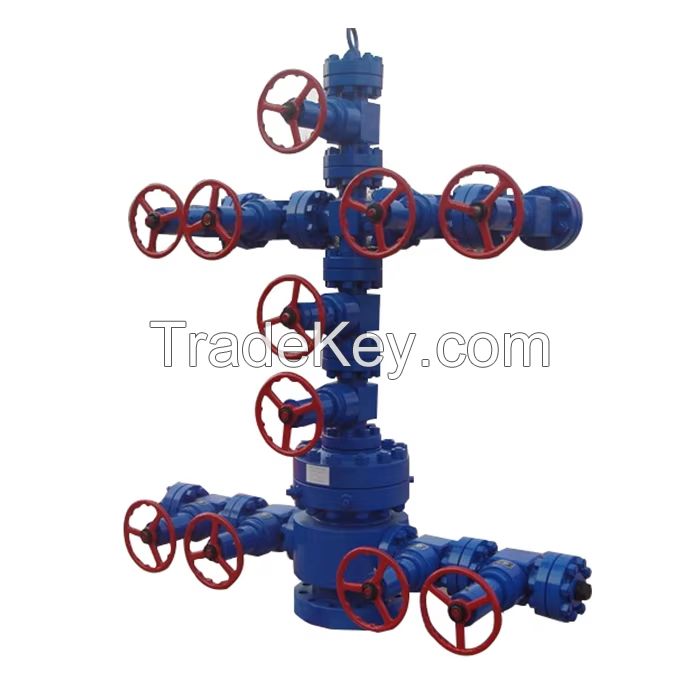

The Oilfield X-mas tree / Christmas tree--Wellhead Device

Product Description

Product Description:
The Xmas tree, also known as the Christmas tree, is a wellhead device used to extract oil such as the jet well and the machine production well. It is the main equipment for controlling and regulating oil and gas production at the top of oil and gas Wells, which mainly consists of casing head (many gates and three or four way composition), tubing head, and tree body. The tree is equipped with oil nozzles (choke nozzles), and the oil and gas production is controlled by changing the oil nozzles with different internal diameters.
The tree has the following functions :(1) Connect each layer of casing, seal the annular space of each layer of casing, and carry the weight of casing. (2) Suspend tubing and downhole tools, support the weight of all tubing strings in the well, and seal the annular space between tubing and casing. (3) Control and regulate the production of oil Wells. (4) Ensure the construction of various underground operations, facilitate the construction of well killing operations, operation and other measures and daily production management such as pressure measurement and wax removal. (5) Oil pressure, sleeve pressure data.

Performance and Advantages of our Products:
1. The oil pipe head, hanger, valve and other parts are standard configuration, and the user can customize the oil (gas) tree with standard configuration according to the specification requirements and casing procedures.
2. Apply to all kinds of casing, tubing programs and connection forms
3. Safe and reliable running, simple and convenient operating and maintenance
4. Can be equipped with various (pneumatic) hydraulic safety valve.
