Wireless home GSM alarm system

Product Description

Wireless home GSM alarm system

Description and Main functions:

1.  Can send SMS to switch the language Chinese/English/Russian/Spanish.
2. *2 wireless zones( 1 wireless SOS zone, 1 wireless fire alarm zone, and the other *0wireless zones can be defined by user).1 external power failure alarm zone
3. You can connect wireless emergency , wireless PIR sensor, wireless door/windowcontact, wireless smoke detectoretc. Each wireless zone can match numberless wireless sensors
4. Can send SMS to 3 mobile phone No. and Auto-dial 3 phone No. while alarming
5. You can listen what happened in the alarm area while alarming
6. Arm/disarm by SMS and remote controllers, can be set by SMS.
7. Two-way intercom function;
8. With password protection while the system is working.
9. Switch to Backup rechargeable battery when the power is failure or cut by intruder and will send SMS.If the power is recovered, it will also send SMS to you.
10. Switch to Backup rechargeable battery when power is failure or cut by intruder.
11. Wireless Emergency function:you can press the to alarm immediately in order to get help if in emergencies.
12. Can set the installation address by SMS.
13. Can send alarm signals to monitoring center through GSM network.

Specification of main unit:

Output power: DC*2V

Input power: AC**0V to **0V,*0Hz or *0 Hz

Working hours of standby Battery(DC8.4V):More than *0 hours

Wireless frequency for above **5MHZ/**3MHZ

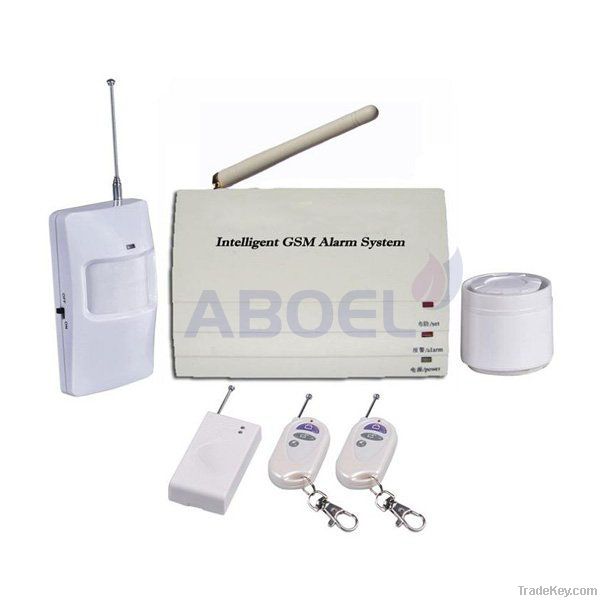

Includes:

One alarm host (main unit)

One Wireless door/window magnetic contact

One PIR sensor

Two remote controllers

One siren (More than **0DB)

One AC adapter

One English user manual

Usage

1. Arm/disarmed by remote controller

a. Press the “ ” on the remote controller, the host makes “di” sound and the light of ARM is twinkling. *0 seconds later the host enters into arm mode and the light of ARM are on.

When the light of ARM indicator is twinkling, you can press the “ ” to enter into arm status quickly.

b. Press the  “ ” can disarm, the host make “di,di” sound, and the light of ARM indicator is off.

2 .Emergency alarm

When an emergency alarm occurs, press the “ ” and the siren goes on intermittently for *0 seconds to inform the neighbors. At the same time, the system will automatically dial thepre-set phone numbers cycled for three times and send the SMS of “Emergency alarm”.

3. External power failure alarm

When the system checks out that there’s something wrong with the external power or the external power is off for more than 2 seconds, it will enter into alarm status immediately. At the same time, the system will automatically dial the pre-seted phone numbers cycled for three times and send the SMS of “External power failed”.

When the power supply is on, the system will stop alarming immediately and send the SMS of “External power OK”.

4. Alarm and Handling

When an alarm occurs, the siren will alarm for *0 seconds to inform the neighbors. At the same time, the system will automatically send SMS to report the guarding zones and dial the pre-set phone numbers. When any phone is answered, you can hear the voice message and monitor the sound at site. If the phone line is busy or can’t put through, the system will auto-dial the next phone number circularly till the one of them is answered. If nobody answers the phone, the system will stop dialing after auto-dialing circularly for three times.

Note: If there are external speakers, you can achieve two-way communication after you answer the phone.

Operation Cautions

1.Make sure the equipments have no water.

2. Install the system in a hidden place.

3. Turn off the power supply before insert/take out the SIM card.

4.Have a hard connection to the main power supply and provide good heat dissipation.

5. Check all the detectors and their battery in time and change them when power is low.
