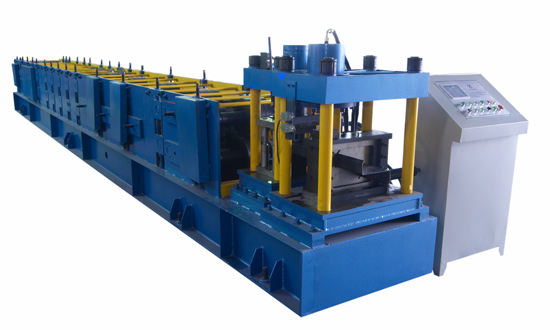

Z purlin roll forming machine

Product Description

Capability and technical parameter： 1）mainframe base was processed by dragon plane，machine wallboard screw orientation coupling，bar is hard to departure, rolling is high precision； 2）machine all run by hydraulic, mainframe was drive by hydraulic motor, calm and reliable；no inertia； 3）hydraulic dislocation cutting，after cutting, section geometry shape is nicety，no waste material； 4）computer measure length，hydraulic punch two-side ellipse hole，hole distance can adjust randomly，at the same time can punch middle round hole； 5）fixing joint hole is adjustable； 6）along with seven-roller level device，guarantee Z purlin level up； 7）roller use high quality alloy steel GCr*5； 8) heat treatment : forge—temper—anneal—normalizing—quench—temper； 9）specification：see above table *0）diameter of roll shaft￠*0㎜； *1）total length of this line:*2 meter； *2）speed:**7m/min(include the cutting time)； *3）roller quencher hardness :HRC******0 ； *4）roller quencher deepness :8mm； *5）rolling thickness :2.**3.0mm； *6）Motor power:*8.5kw； hydraulic power:*1KW *7）electrical source：**0V/3phase/*0Hz； *8）Computer operating board adopt OP**0A, China *9）main roll forming stand:*6station *0）decoiler is support umbrella type； *1）decoiler capacity：5T C、Equipment Manual de-coiler、forming machine、hydraulic cutting、computer control box、 hydraulic oil box、supporter D、producing flow： decoiler～level～roll forming～finalize～rectify～measure length～punching hole～cutting ～supporter E、Delivery Time: *0 days
