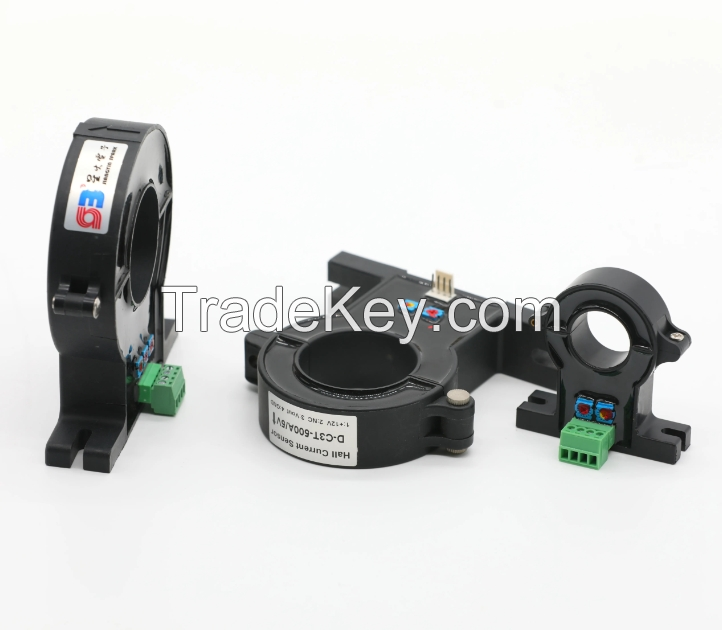

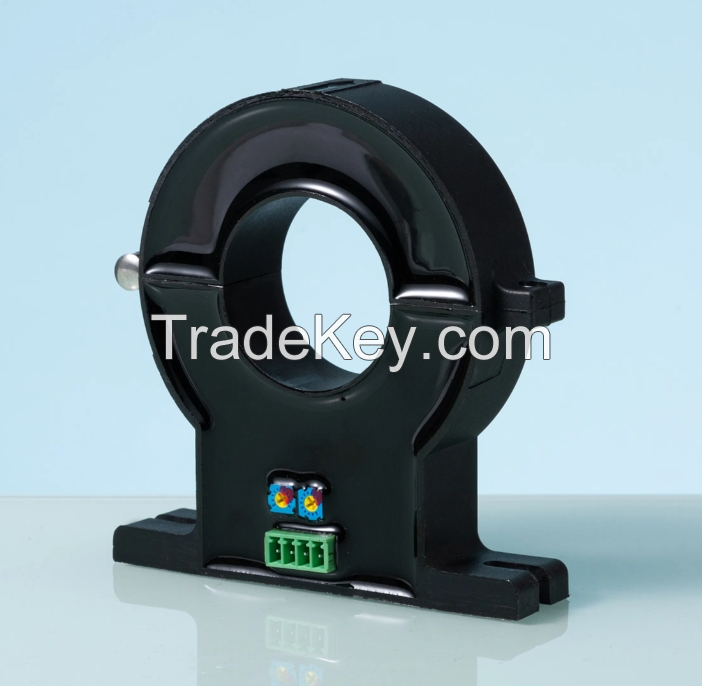

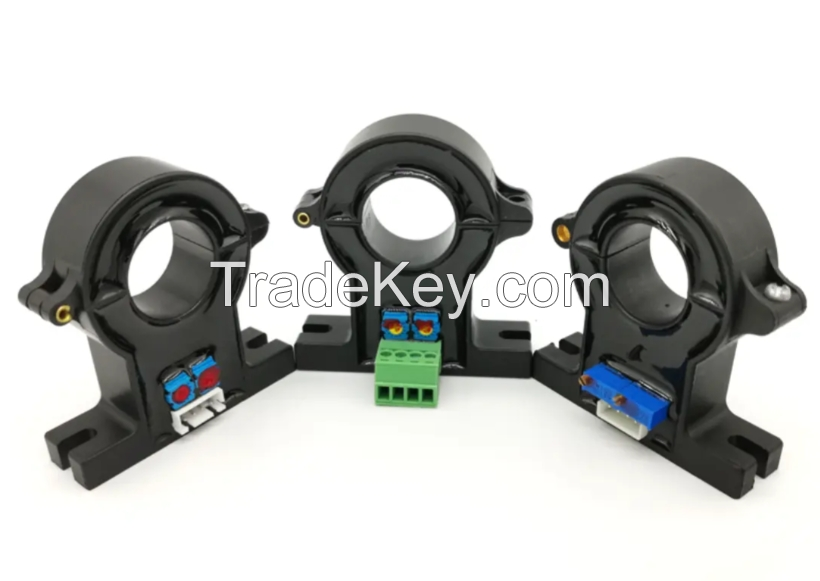

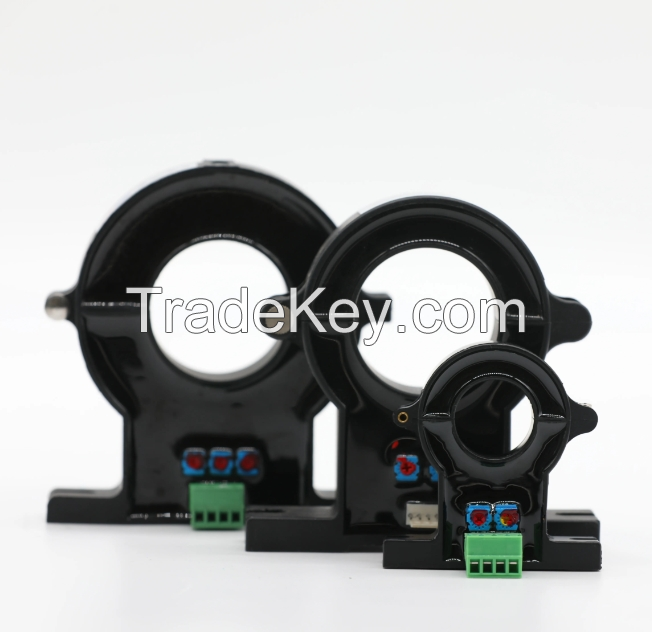

DCT40series dismountable hall effect current sensor
is an open loop device based on the measuring principle of the hall
effect, with a galvanic isolation between primary and secondary
circuit. It provides accurate electronic measurement of DC, AC or
pulsed currents.

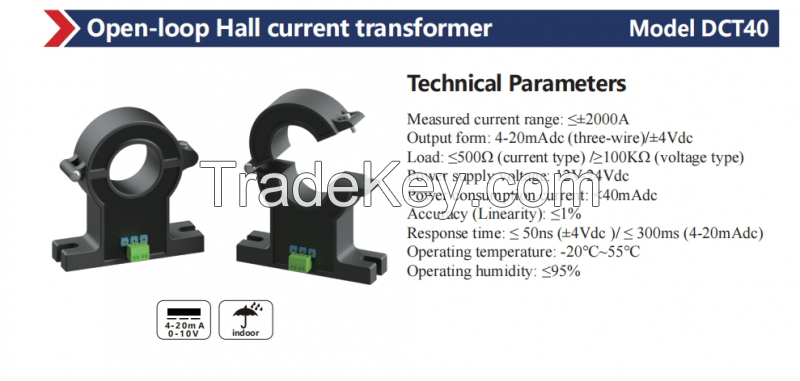

Electrical
data
| Type | DCT40 |
单位 Unit |
|||||||||||||||||||||||
|
测量电流范围(Ip) Measure range(Ip) |
≤±2000 | A | |||||||||||||||||||||||
|
额定输出电压 Rated output |
±4V±1% |
0-5V(+2.5V) ±1% |
4-20mADC ±1% |
V | |||||||||||||||||||||
|
电源电压 Supply voltage |
+12V~+24V | V | |||||||||||||||||||||||
|
功耗电流 Power Consumption |
<30 | mA | |||||||||||||||||||||||
|
失调电压 Offset voltage |
±20 | mV | |||||||||||||||||||||||
|
磁失调电压 Magnetic offset |
±20 | mV | |||||||||||||||||||||||
|
失调电压温漂 Offset drift |
～+85℃ ≤±1 | mV/℃ | |||||||||||||||||||||||
|
输出电压温漂 Output drift |
