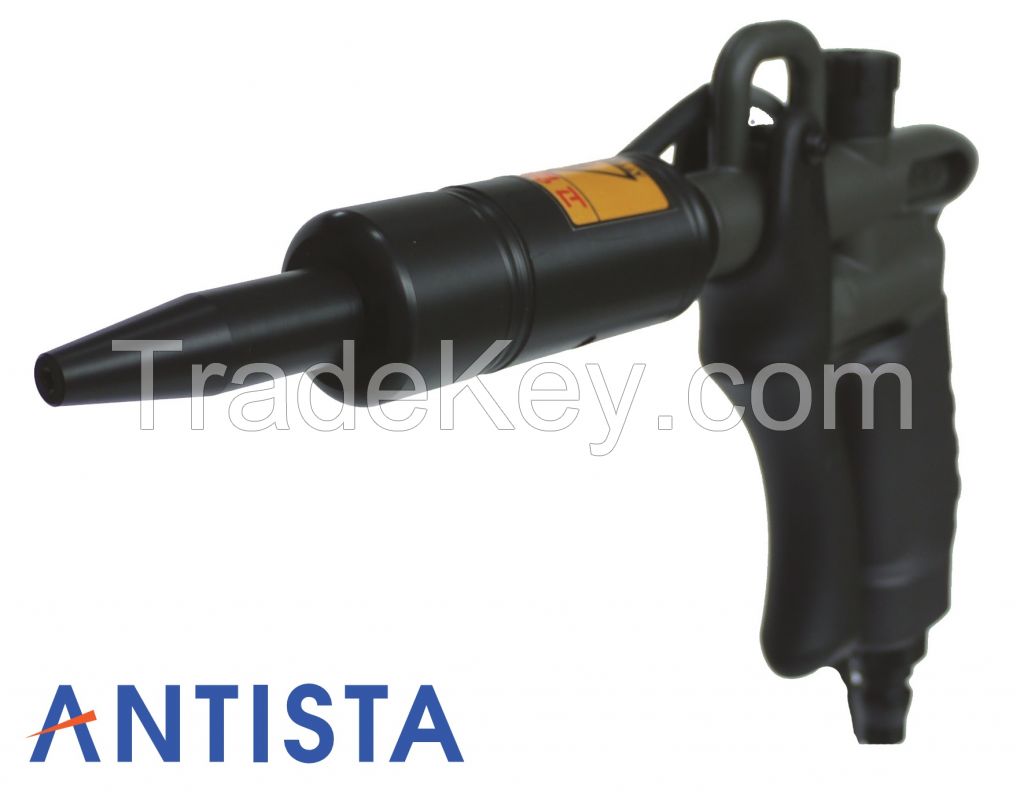

Ionizing Air gun - (with DC-Power Controller)

Description

roduct Description
Power generated from the High Pressure Generator is converted to a corona discharge, and with the compressed air supplied by the Air Gun, ion and anion are sprayed to the charged body through the discharging needle.
The discharged ionized air is neutralized with electrons of the charged body, and the polluted dusts are removed by the ionized air.

Application and Effect
1. Removing electrostatic and foreign materials from plastic and injection products;
2. Removing electrostatic and foreign materials from electronic products and precision optical devices;
3. Removing electrostatic and foreign materials from LCD and display products;
4. Removing electrostatic and foreign materials before printing or coating

Method of Use
1.  Connect the high voltage lines (white, black) of Ion Gun to the ION Output of High Voltage  Generator. (+ - not distinguished)
2.  Connect **0V power to the back of High Voltage Generator (DC POWER).
3.  Connect the Air Hose to the Gun.
4.  Turn the power switch ON and use the Air Gun to spray ion and air to remove electrostatic and  foreign materials.

Caution
1. Clean and remove, periodically (once a week), foreign materials from the ion needle on the Nozzle  to prevent deterioration.
2. Wet the cotton buds or brush with alcohol to clean the Product.
3. Turn power OFF when cleaning the ion needle. (be aware of high voltage)
4. Do not get the ion needle in contact with metallic objects.
5. Do NOT adjust the ion balance volume as it may break the ion balance.
    (It is factory set, and it does not need to be adjusted.)

Accessories
DC Power Controller (add on dc power controller price USD$**5.*0)


Specifications


1) ION AIR GUN

Nozzle Size: *0**5L
Air Pressure: 1~8kg/cm2
Length of High Voltage Line: 2.2M standard
Air Gun: Japanese PVC Air Gun (adjustable air)
Ion Electrode: Tungsten 1.5MM 2EA

2) DC Power High Voltage Generator

Input Voltage: AC**0V, *0/*0 HZ
Output Power: *0 KV DC TYPE
Power Consumption: *0W
Ion Balance: ±*0V
Weight: 1Kg
Dimensions: **0(w)**0(h)***0(d)
Case Material: EGI/painted
