MISTFLEX 15/18 - Connection Hose Assemblies

Description

~MISTFLEX *5 / *8 SEUNG JIN Connection Hose Assemblies, is suitable only for providing a connection between water supply piping to a Water Mist System.

 It offers the advantage of providing greater flexibility in the location of water mist nozzle than conventional rigid piping.

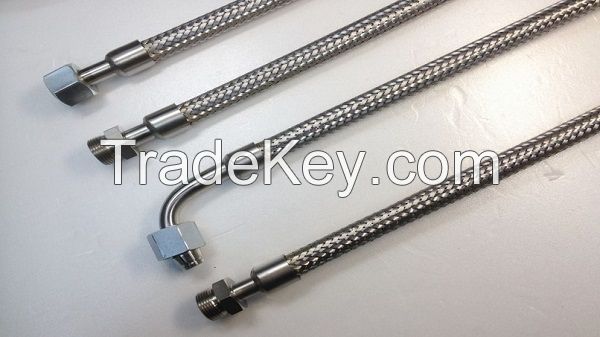

 MISTFLEX *5 / *8 provides a unique sprinkler drop assembly comprised of the following components:


• Stainless Steel Corrugated Hose With Stainless Steel Wire Mesh(Braid)

• Welded Stainless Steel Hex Nipple with Male Thread at the Inlet

• Threaded Slip Nut for connection with Water Mist Nozzle

• Specially Designed for the application of High Pressure

 SJ : Sprinkler Joint
  *5 : Hose Nominal Diameter(*4.5)
  *8 : Hose Nominal Diameter(*7.5)
  B : Braided Type
  T / E : T - Both Straight Threaded End / E - Straight and *0° Elbow End
  XXX : Length

Product Code : MISTFLEX SJ*5B-TXXX / MISTFLEX SJ*5B-EXXX
 MISTFLEX SJ*8B-TXXX / MISTFLEX SJ*8B-EXXX

Product : Connection Hose Assemblies
 Hose Diameter : *4.5mm
 Max. Working Pressure : **0 Bar
 Max. Ambient Temperature : **5°F
 End Connections : Hose Nipple or Elbow(DIN ***1) With Nut(DIN ***0)
 Hex Nipple Thread M*0x1.5 *2S
 Material : Stainless Steel **4


Product : Connection Hose Assemblies
 Hose Diameter : *7.5mm
 Max. Working Pressure : **0 Bar
 Max. Ambient Temperature : **5°F
 End Connections : Hose Nipple or Elbow(DIN ***1) With Nut(DIN ***0)
 Hex Nipple Thread M*0x1.5 *2S
 Material : Stainless Steel **4
