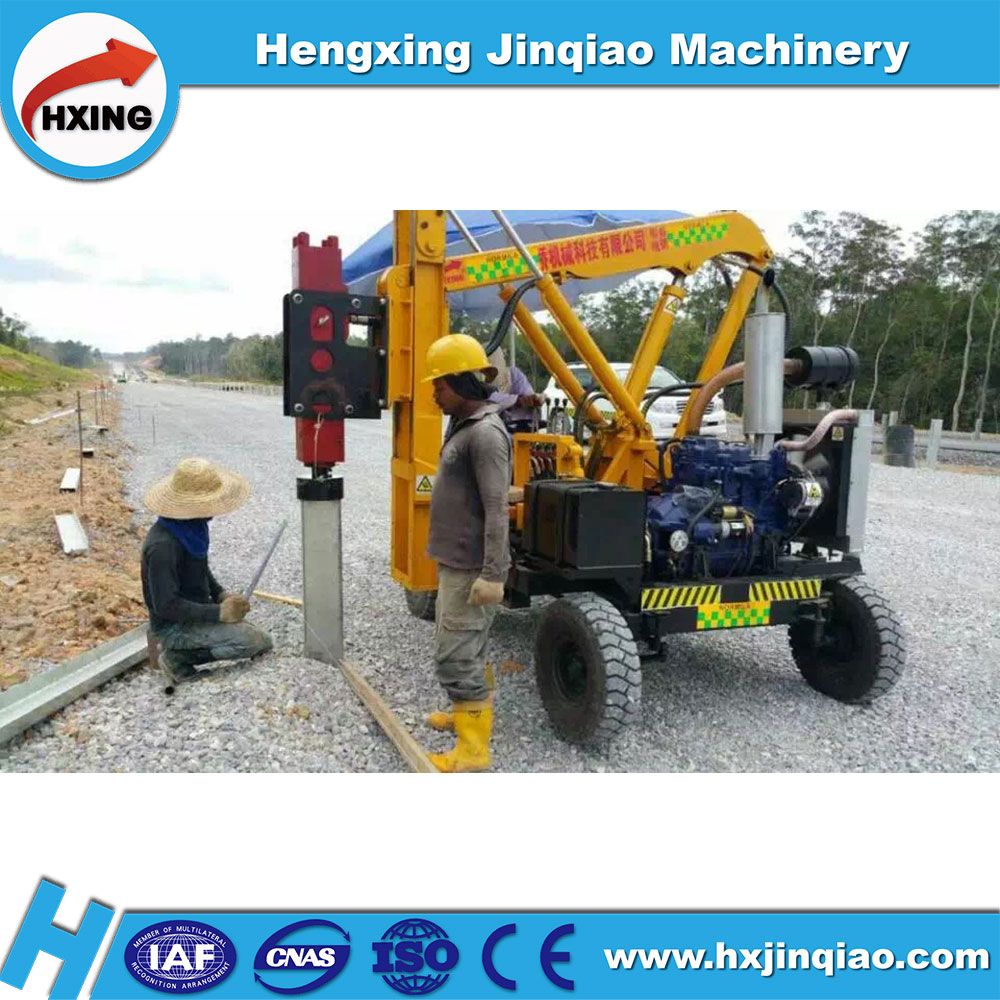

Foldable mast piling and extraction machine for highway construction pile driver

Description

Mini Post Driver, Pile install Machine

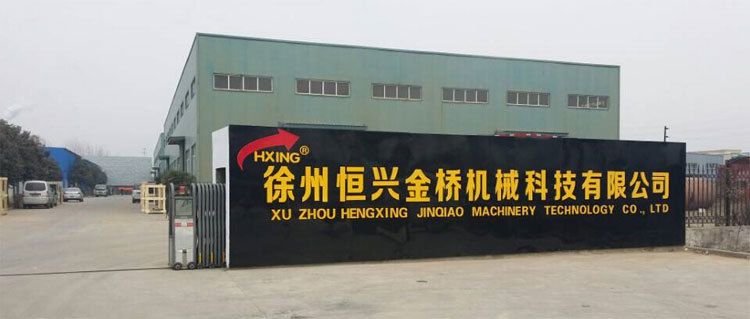

Company Information
Our company located in the Construction Machinery Center-Xuzhou City,  we are professional manufacture for highway guardrail pile driver, photovoltaic pile driver,  and kelly bar for rotary drilling rig,  which mainly used for high-bridge construction, high-building construction and other civil projects.
Product Description
1. Introduction of HX Series hydraulic pile driver:
HX series self-propelled hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.

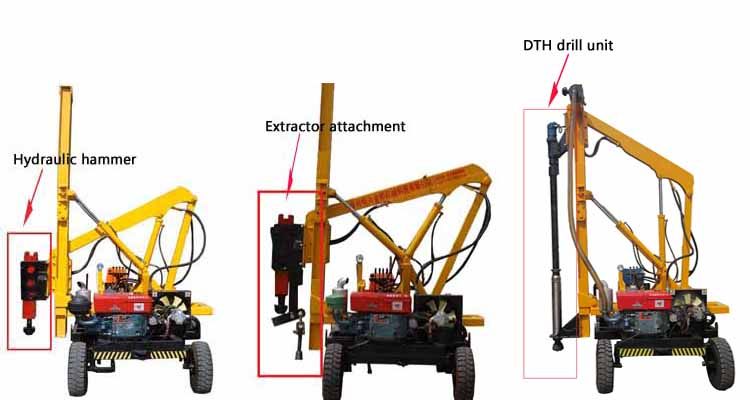

Product Application Field:
Ramming
HX23A/26A/36A Series Guardrail Pile Driver ramming function:
1.Ramming hammer can be customized to聽C-shape,U-Shape,Round,Sigma Shape,etc
2.Hammer model:YC230/YC260/YC360(YC260 is the most popular)
3.Max post length:2600mm
4.Max ramming depth:2000mm

Extractor
HX23A/26A/36A Series Guardrail Pile Driver extractor function:
With extractor to pull out the post and reinstall.

Drilling
HX23A/26A/36A Series Guardrail Pile Driver Drilling function:
With drilling tools for pre-drilling driven piles.
1.Suitable for rock area for pre-drilling construction.
2.Max drilling diameter:68-300mm
3.Max drilling depth:1700m

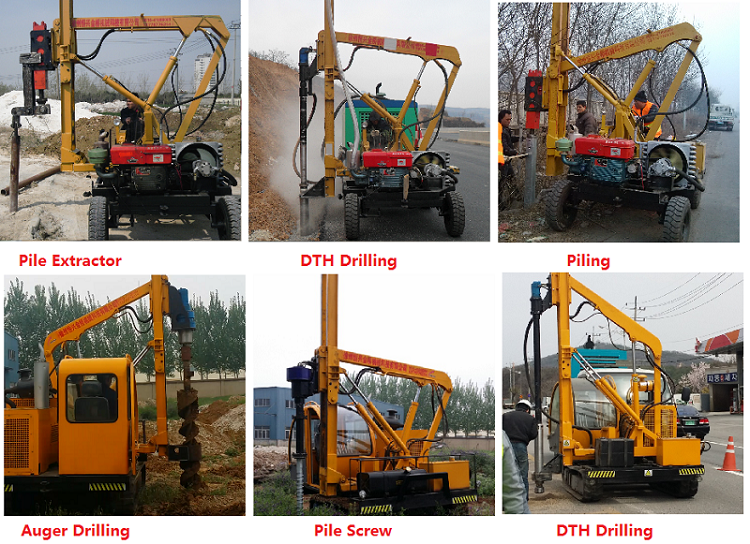

2.On Site Working of Hydraulic Pile Driver:

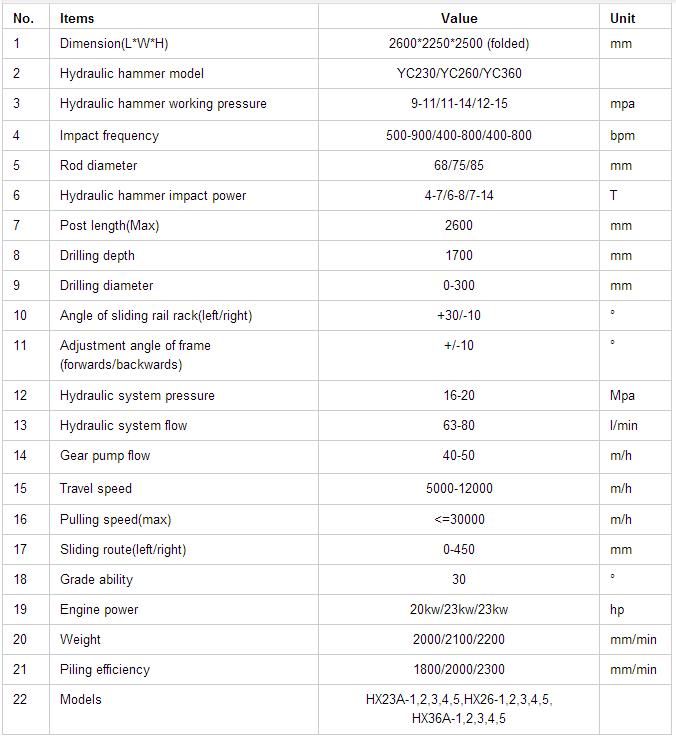

3.Technical Parameter of Hydraulic Drill Pile Driver:

Main Features:
1) Drive system: The NO.brand  diesel engineer with reasonable power and superior  performance.
2) Hydraulic system:The premium hydraulic components guarantee high efficiency and durability of the hydraulic system.
3) Easy operation and maintenance.
4) Warranty:6 months after-sales service.

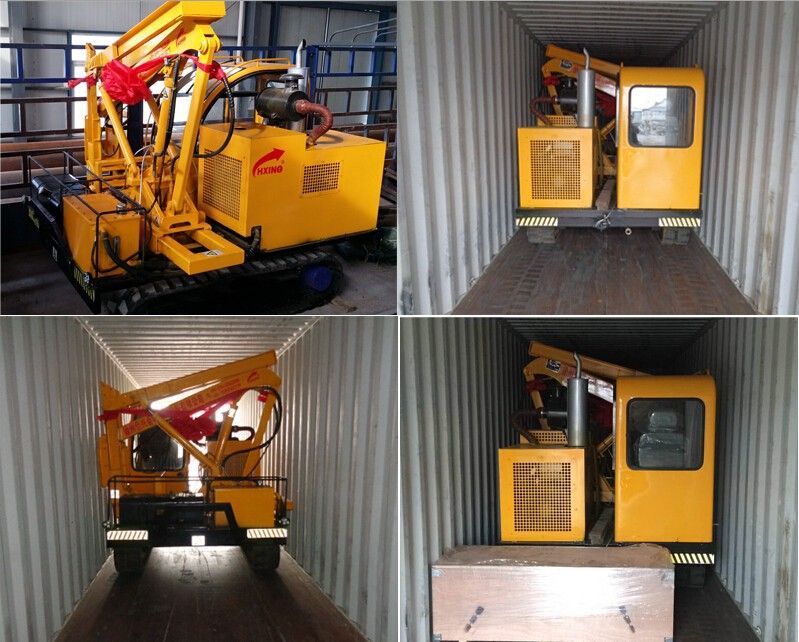

4.Packing & Shipment
2600*2200*2500mm(nude)/1670*540*600mm(plywood case)/Total two parts by 40HQ container(LCL).

FAQ
1.What is the main function of our pile driver?
Ans.: It has different models used for all kinds of PV post and highway guardrail install.  It is the best choice for solar power station construction.

2.What is the warranty of our machine?
Ans.:Our main machine enjoys a 6 months warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.

 3.What is the lead time and shipping method?
 Ans.:Usually the lead time is 3 days, and we send the machine by sea.

 4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight.


5.If you have any other questions, pls dont hesitate to contact me.
