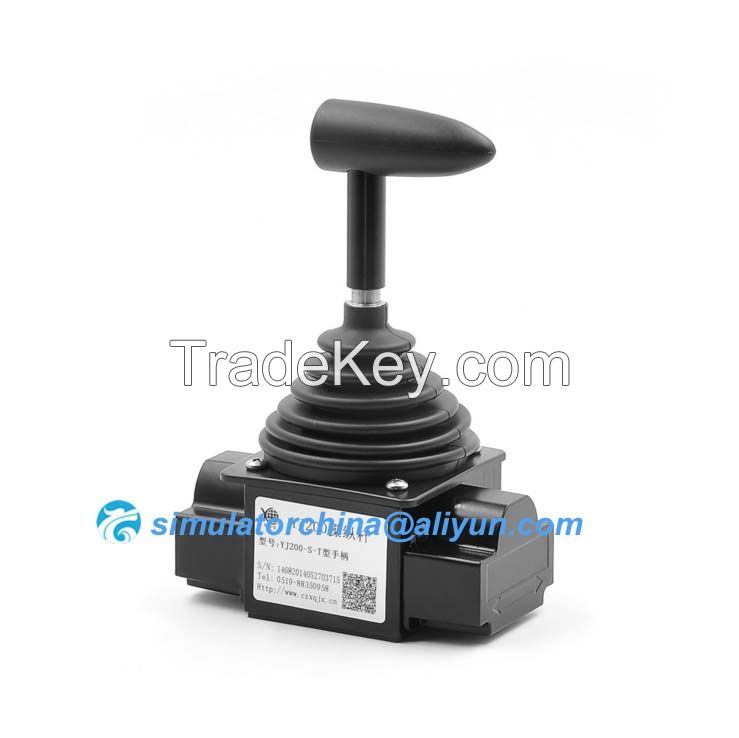

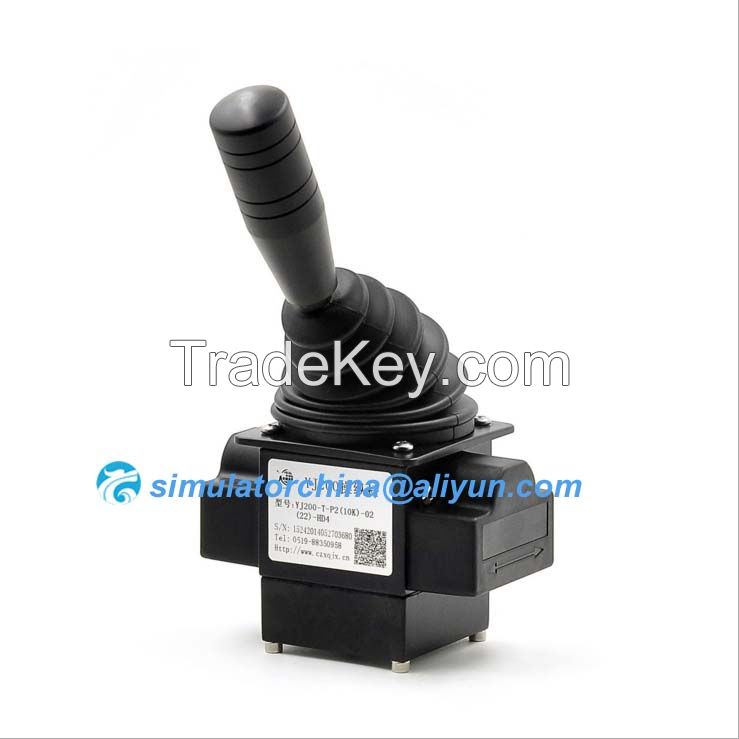

Product features 1. All metal structure, fully sealed design 2. Single shaft friction positioning, the median with zero self-locking 3. The output format: potentiometer output, hall voltage output, standard voltage 4. Long life conductive plastic potentiometer, import Omron switch 5. The electric current can reach 125V5A, reliable perormance 6. Mechanical life is more than 5 million times 7. Has a good waterproof, moistureproof, shock resistance performance |
||
| Potentiometer specifications | ||
| Environment Specifications | ||
| Storage temperature | normal temperature | |
| Operating temperature | —25℃~+80℃ | |
| Installation of flange protection grade | IP56 | |
| Vibration | amplitude of vibration ±3g, frequency 10HZ-200HZ | |
| Shock | 20g, 6ms, half sine type | |
| EMC anti-interference grade | 100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards | |
| Transmit grade | 150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards | |
| ESD anti-interference grade | Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards | |
| Mechanical Specifications | ||

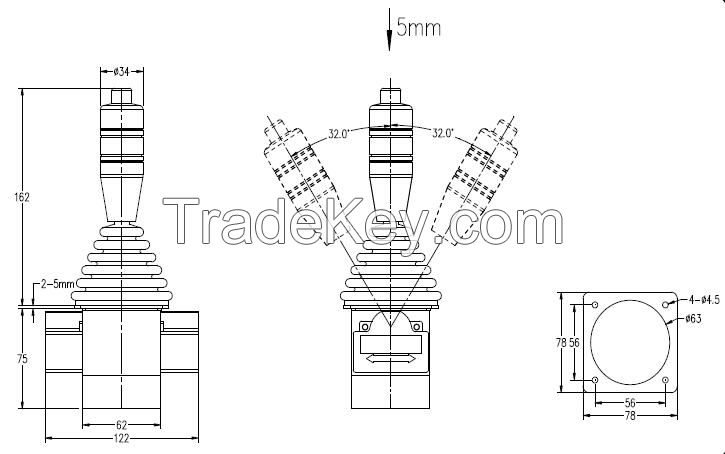

| Mechanical rotation | ±32° (potentiometer) ±20° (hall sensor) | |
| Operating torque | 7.5N(50Nmax) | |
| Mechanical life | 5,000,000 cycle | |
| Mechanical tolerance | ±0.5° | |
| Electrical Parameters | ||
| Hall type | Power supply voltage | 5±0.5VDC |
| The power consumption of current | 6.5 mA/each hall chip | |
| Resolution | Infinite | |
| Maximum voltage | 15 VDC continuous | |
| Reverse polarity maximum voltage | 14.5VDC | |
| Load resistance | 5KΩ | |
| The median voltage (no-load) | 48~52%Vs | |
| Potentiometer | Power supply voltage | DC24V |
| Power supply current | < 20mA | |
| Resolution | Infinite | |
| Resistance (10%) | 5KΩ, 10KΩ | |
| Electrical rotation | ±32° | |
| Output voltage range (Relative voltage) | 0~100%;10~90% | |
| Maximum voltage | 48%~52% | |
| Potentiometer maximum load of voltage | 32VDC | |
| Maximum power consumption (25 ℃) | 0.25W | |
| The direction of the switch | Switch position ±3° | |
