FOB Price
Get Latest Price5 ~ 10 USD / Piece ( Negotiable )
|1 Piece Minimum Order
Country:
China
Model No:
XH-SCT-0750
FOB Price:
5 ~ 10 USD / Piece ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
5 per Piece
Minimum Order Quantity:
1 Piece
Packaging Detail:
Cartons with plastic bags
Delivery Time:
3-7days
Supplying Ability:
100000 Piece per Month
Payment Type:
T/T, L/C, PayPal
Product Group :
Contact Person Mr. Jay
No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu
Key
specifications
Low cost.
Split core
design;safer,easier installation,portable.
Specifications
Rated Current 5A to 3000A
loads.
Rated output:
0.333Vac

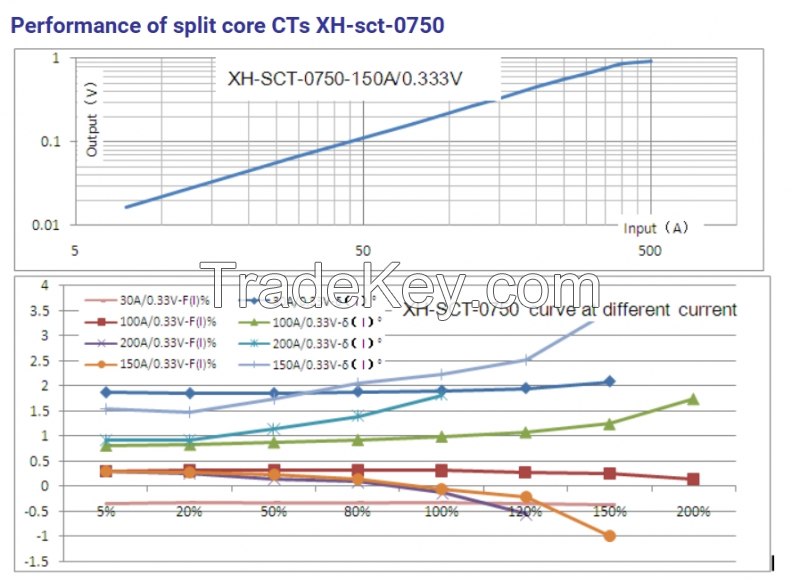

Accuracy:±1% from 5% to 120%
of rated current
Phase Angle: less than 2
degrees at 50% of rated current
Insulation
Voltage:600Vac
Maximum Primary
Voltage:5400Vac ,Service Entrance CAT IV 250V
Operating Temperature:-40ºCto
80ºC.
Frequency
Range:50-400Hz
Leads:4Foot(105cm),UL
1015,Twisted Pair,0.34 mm2(22AWG)
UL2808 &CE recognized.
RoHS Compliant
Output and leads can be
customized
| Model | I. D. | Rated Amps | Output | Accuracy | SIZE( mm ) | ||||
| A | B | C | D | E | |||||

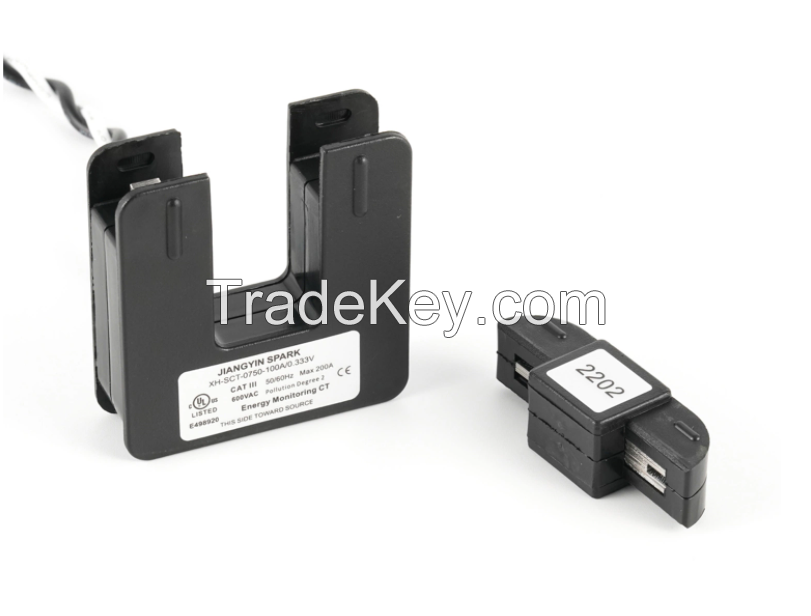

| XH-SCT-0750 |
0.75" (19.1mm) |
5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1.0 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
| XH-SCT-1250 |
1.25" (31.8mm) |
70, 100, 150, 200, 250, 300, 400, 600 | 1.0 | 82.3 | 85.3 | 26.4 | 32 | 32.3 | |
| XH-SCT-2000 |
2.00" (50.8mm) |
400, 600, 800, 1000, 1200 | 1.0 | 120 | 125 | 29.6 | 52.5 | 52 | |

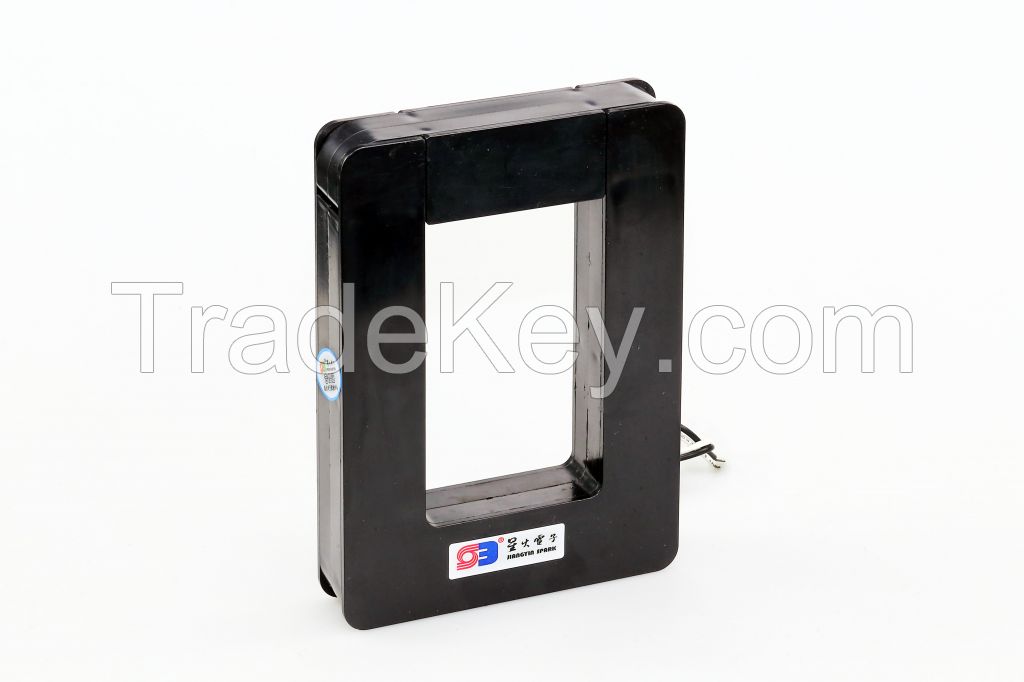

| XH-SCT-3000 |
3.00" x 5.00" (76.2mm x127mm) |
1000, 1200, 1500, 2000.3000 | 1.0 | 145 | 199 | 30.5 | 76 | 130 | |
| Country: | China |
| Model No: | XH-SCT-0750 |
| FOB Price: | 5 ~ 10 / Piece ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 5 per Piece |
| Minimum Order Quantity: | 1 Piece |
| Packaging Detail: | Cartons with plastic bags |
| Delivery Time: | 3-7days |
| Supplying Ability: | 100000 Piece per Month |
| Payment Type: | T/T, L/C, PayPal |
| Product Group : | split core CT/current transformer |
