Product Description

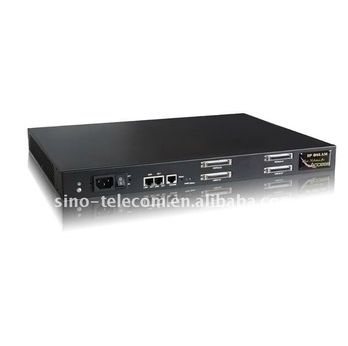

DSLAM***8 is a special pizza box designed for outdoor application with the physical depth about **0mm and the operating temperature up to *0°C . It terminates all the ATM circuits and converts traffic directly to deliver the most popular broadband IP services.

DSLAM***8 offers better bandwidth utilization, ease of use,as well as the low-cost advantage and provides the least initial investment solution for internet service providers who want to start providing broadband service in a low subscriber density location.

DSLAM***8 is compliant with ITU G.**2.5, G.**2.3,G.**2.1, and backwards compatible with early version of ADSL.Its maximum downstream/upstream rate is up to *4/1.2Mbps and maximum reach distance is over 6Km. It is most suitable to provide high speed Internet access on existing copper twisted pair telephone lines.

With the highly compact (1U height) and temperature-hardened design, simple installation and easy adaptation to local POTS/ISDN splitter requirements,DSLAM***8 is an ideal solution for Triple-play requirements deployed in indoor and outdoor enclosures.

ADSL2+ Interfaces:

*8 ADSL/ADSL2/ADSL2+ Ports with splitter built
Supports ANSI T1.**3 Issue 2, ITU G.**2.5, G.**2.3,G.**2.1 (G.dmt), ITU-T G.**2.2 (G.lite)
Provides optimal rate/reach performance
Rates up to *4.0 Mbps
Distance up to 6.0 Km
Multimode (automatic modulation detection)
Supports packets transmit and receive statistics report
 Bandwidth Management control on each port at *2kbps interval
Extended power management capabilities to optimize power consumption for each application

Management
 Web-based management
 SNMP-based GUI EMS
Local RS***2 CLI
Remote in-band SNMP/TELNET management
 Firmware upgradeable via FTP or TFTP

Protocol Support
IGMP snooping/ GMRP/ GVRP/ LACP
SNMP/UDP/IP/MAC/Ethernet

System Features:

2 *0/**0/***0 BASE-TX ports, one for uplink and another one for cascade
Support up to 8 units to be cascaded
SNMP Management Agent and MIB II
TFTP
 BOOTP Client, Boot Server
IP packet size *4 byte to ***2 byte
PPPoE Intermediate Agent
DHCP Relay Agent
8 VCs per ADSL port
Support multiple PVC QoS configuration
**8 MAC address per ADSL port
*8***8 MAC address
Bridging
     1. Ethernet Bridging Broadcast, Flooding/ Dropping.
     2. VLAN bridging
         A. **2 VLAN support
         B. Static VLAN
         C. VLAN Stacking
         D. VLAN Trunking
Multicast
     1. Up to **6 multicast addresses
     2. IGMP v1, v2, v3
     3. Multicast VLAN mapping
         A. Independent VLAN multicast (IVM)
         B. Shared VLAN Multicast (SVM)
     4. handle PPPoE Encapsulated IGMP
Security
     1. Throttling Control
     2. Sticky Bridge Ports
     3. MAC Address Access Control List
     4. IP Address Access Control List
 Inter-Working
     1. IPoA to IPoE Tunneling
     2. PPPoA to PPPoE inter-working
QoS
     1. Input Rate Limiting (IRL) on a per-AAL5 Interface
     2. Output Rate Limiting (ORL) on a per ATM-port and Ethernet basis
     3. Rate Limiting

Hardware Configuration
 2 RJ*5 for Uplink and Cascade
 2 TELCO**0 connectors for **-port ADSL/ADSL2/ADSL2+
2 TELCO**0 connectors for phone line
1 RJ*5 interface for Local Management

Input Power
AC Power Model: *0VAC ~ **0 VAC, ****0 Hz
DC Power Model: **0VDC ~ **0 VDC
Power Consumption: *0 watts

Operation Parameters
Operating Temperature: **0 to *0°C
Storage Temperature: **0~**5°C
Operating Humidity: 5% to *5% non-condensing
Operating Altitude: ***0ft.to **5,**0ft
Reliability: MTBF **0,**0 hrs minimum

Physical Specification
Dimensions: **0mm(W) x **0mm(D)in x *4.5mm(H)
Weight: 6.0Kg
